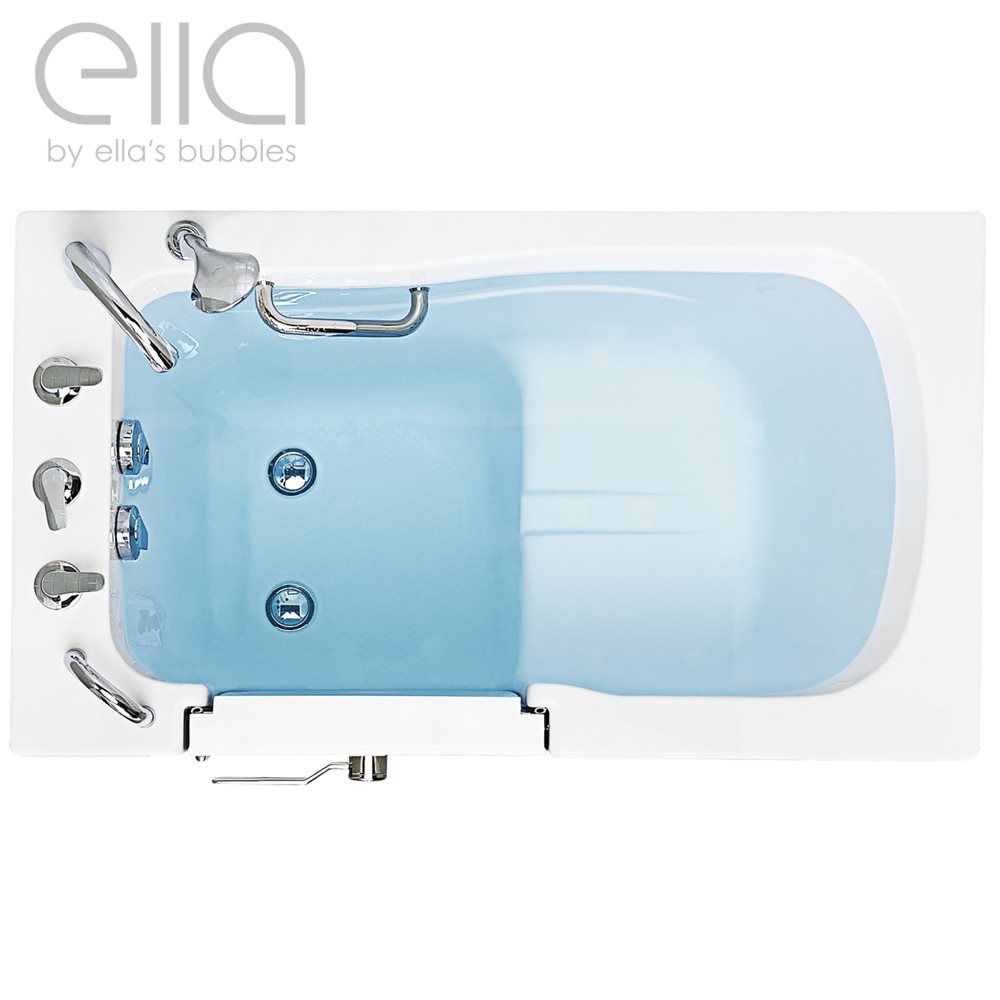

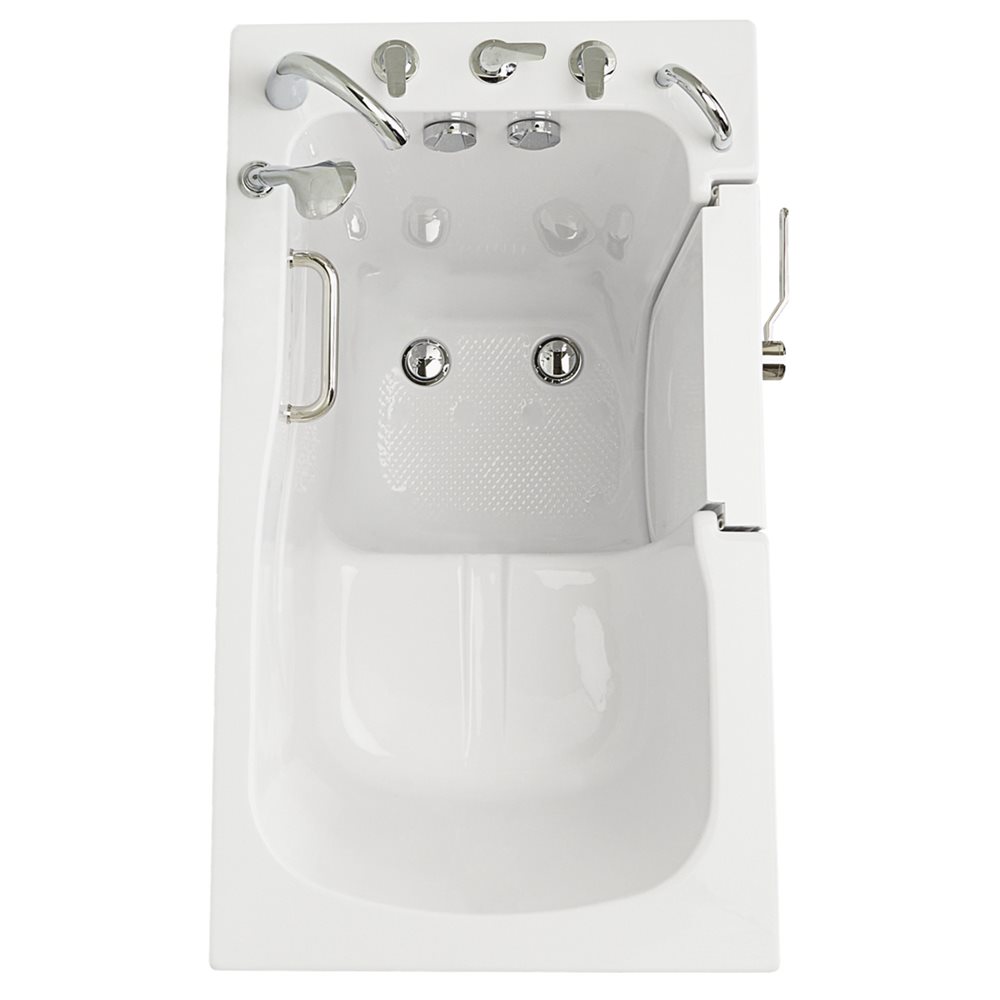

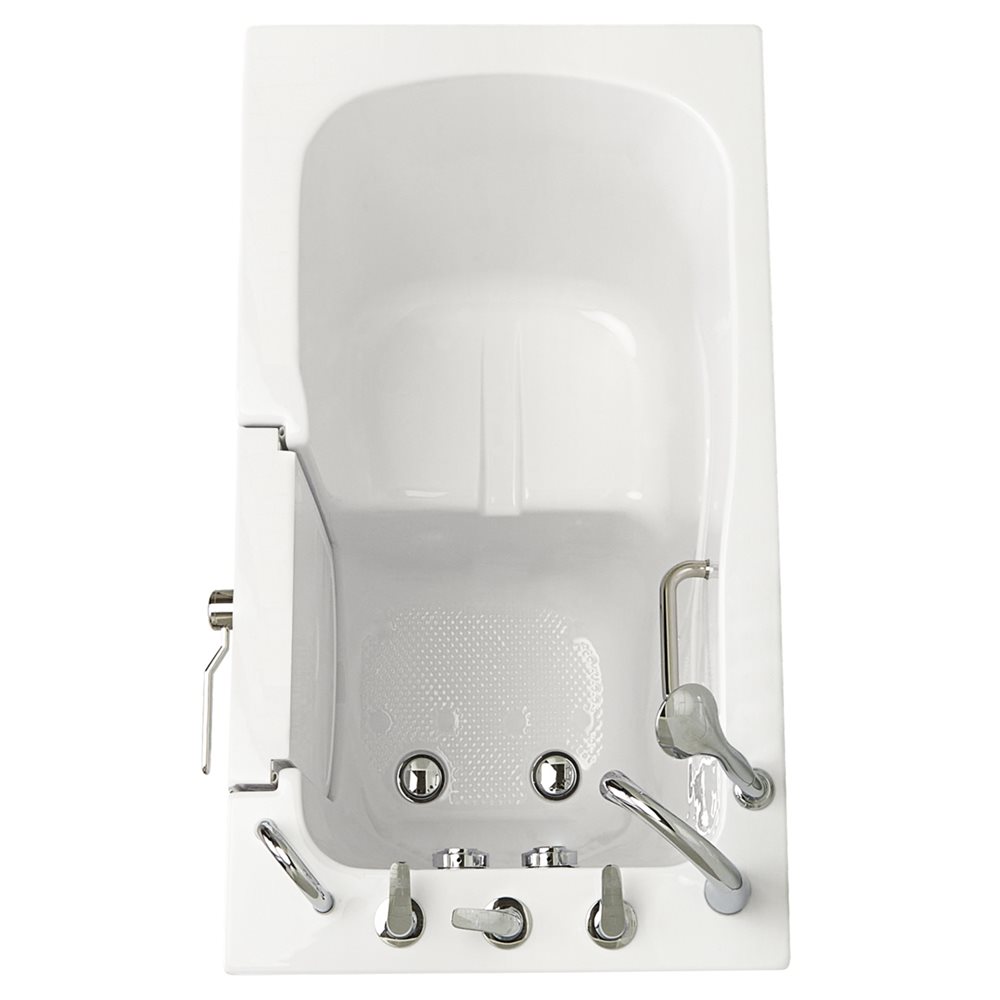

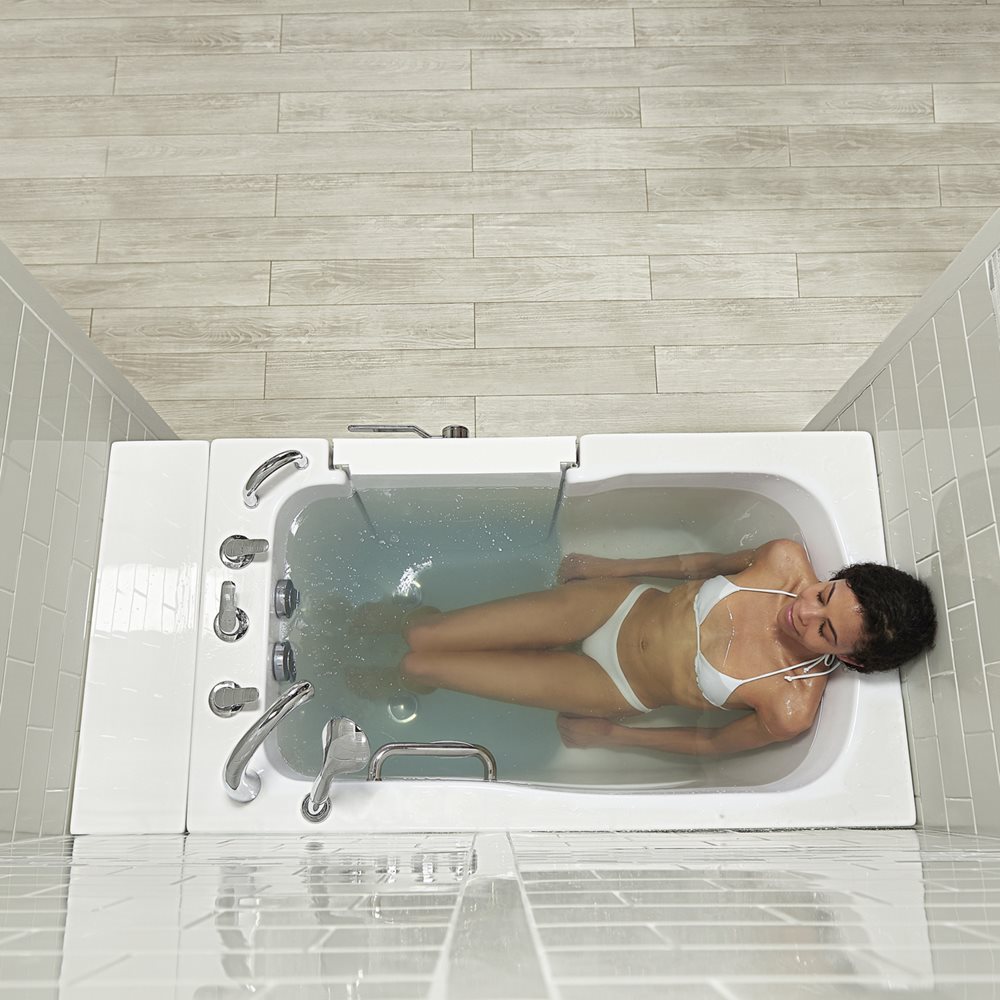

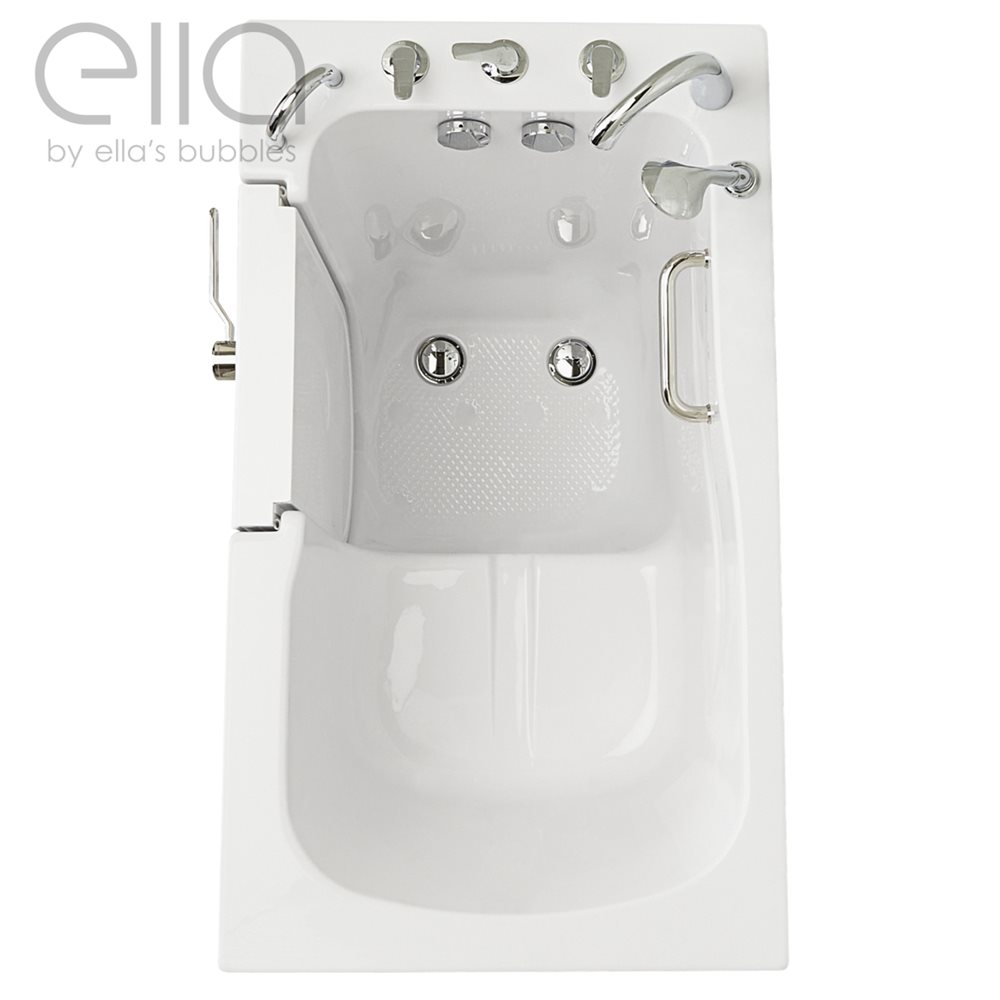

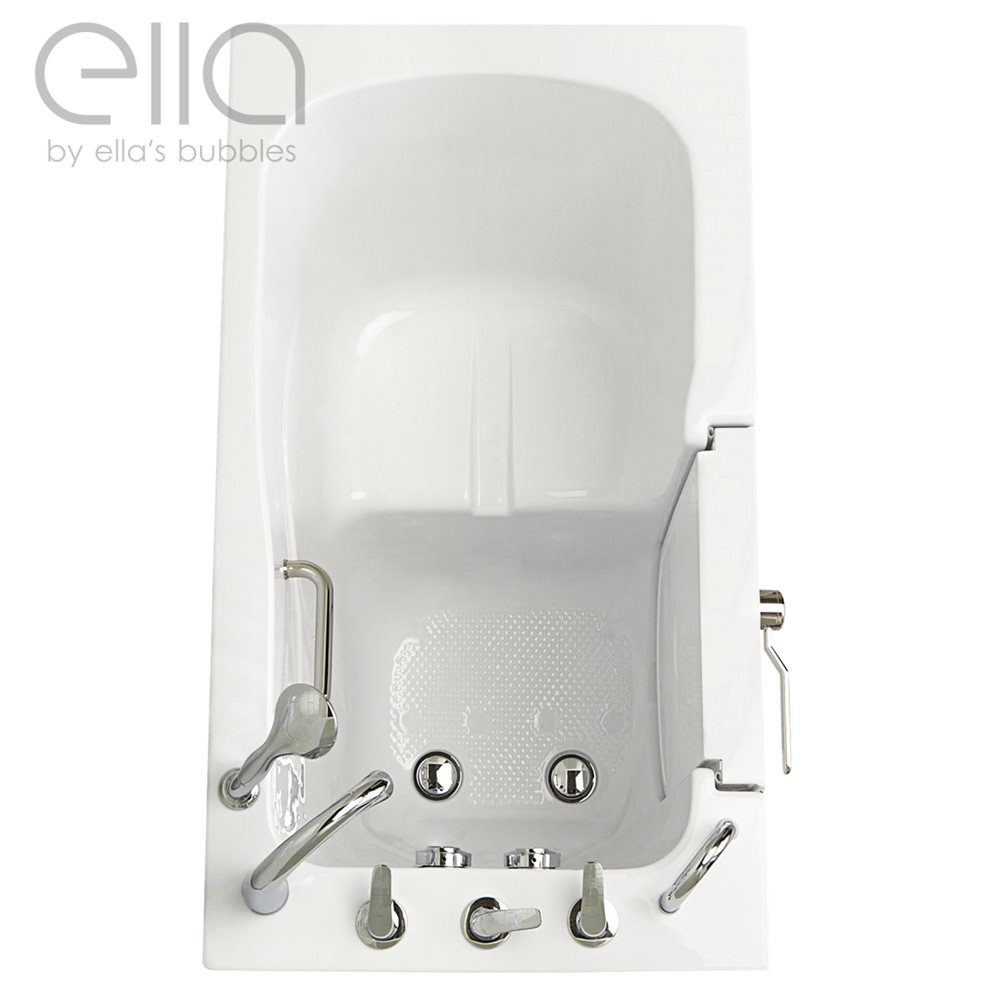

Soaking (No Jetting)

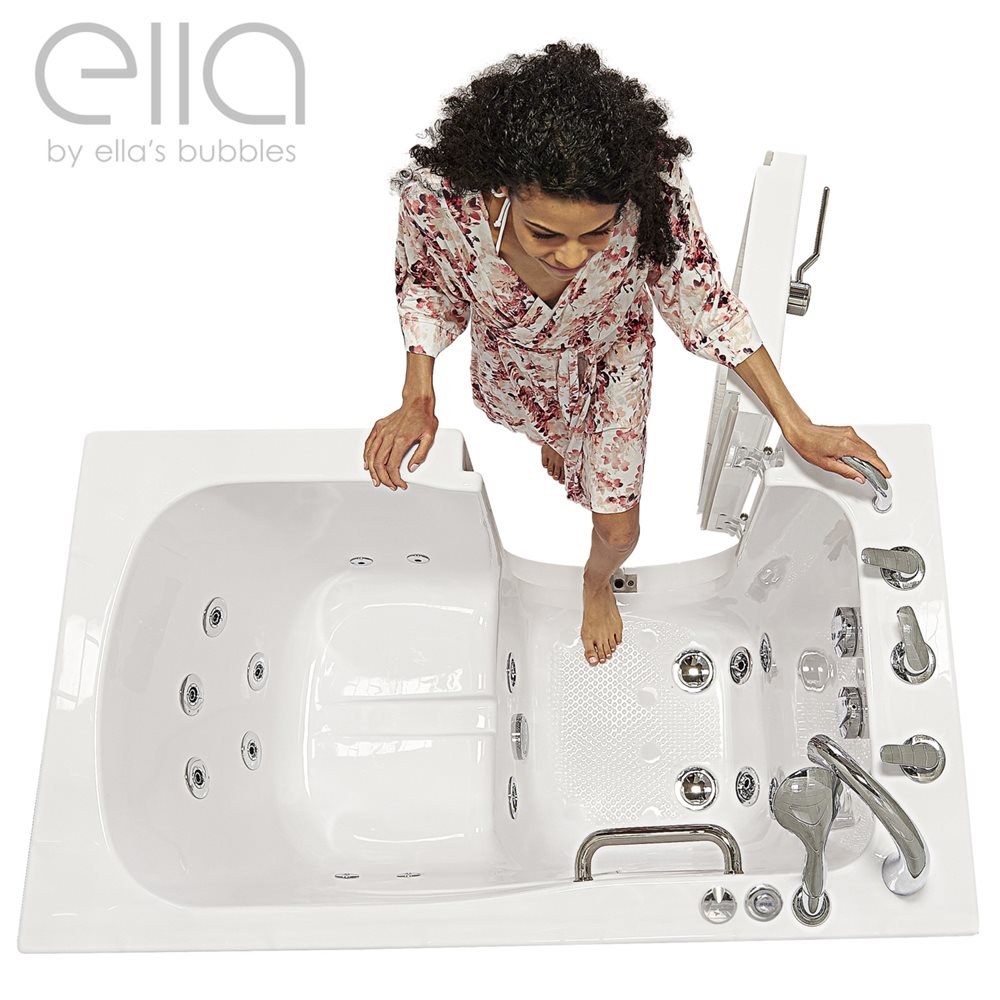

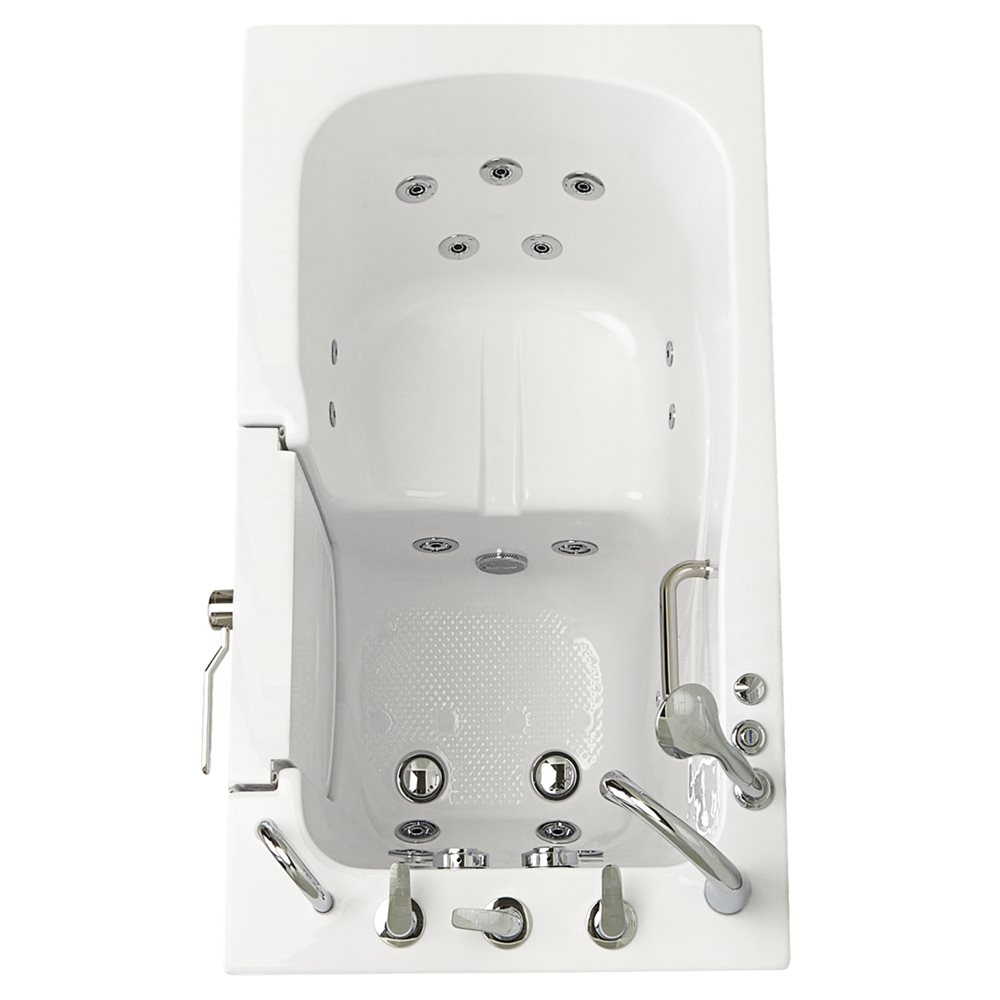

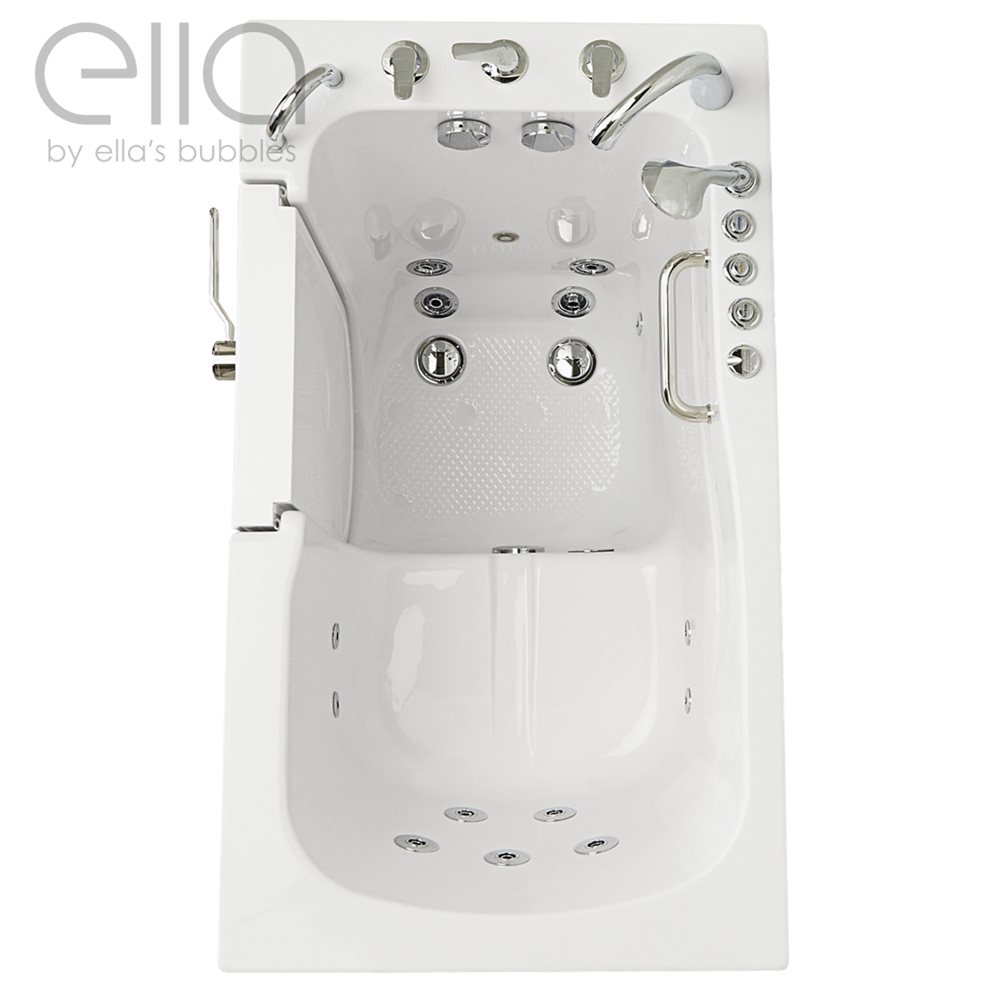

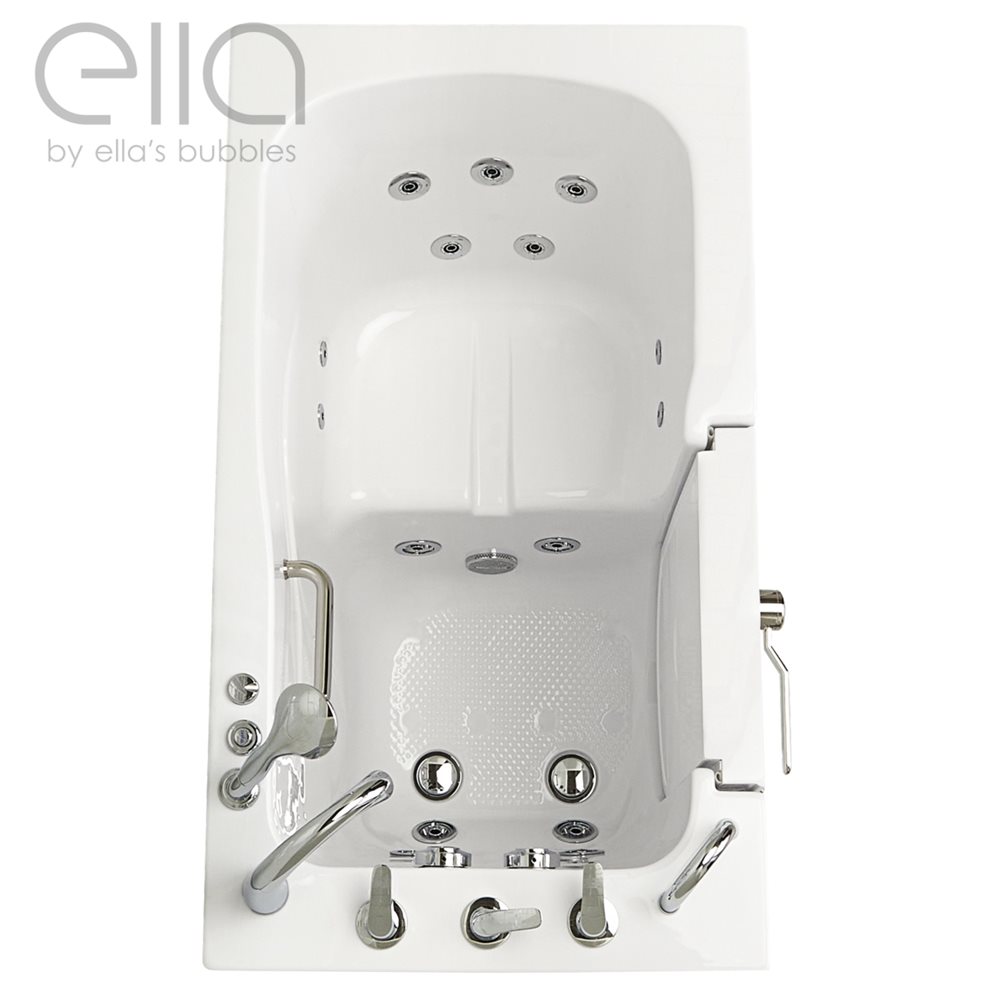

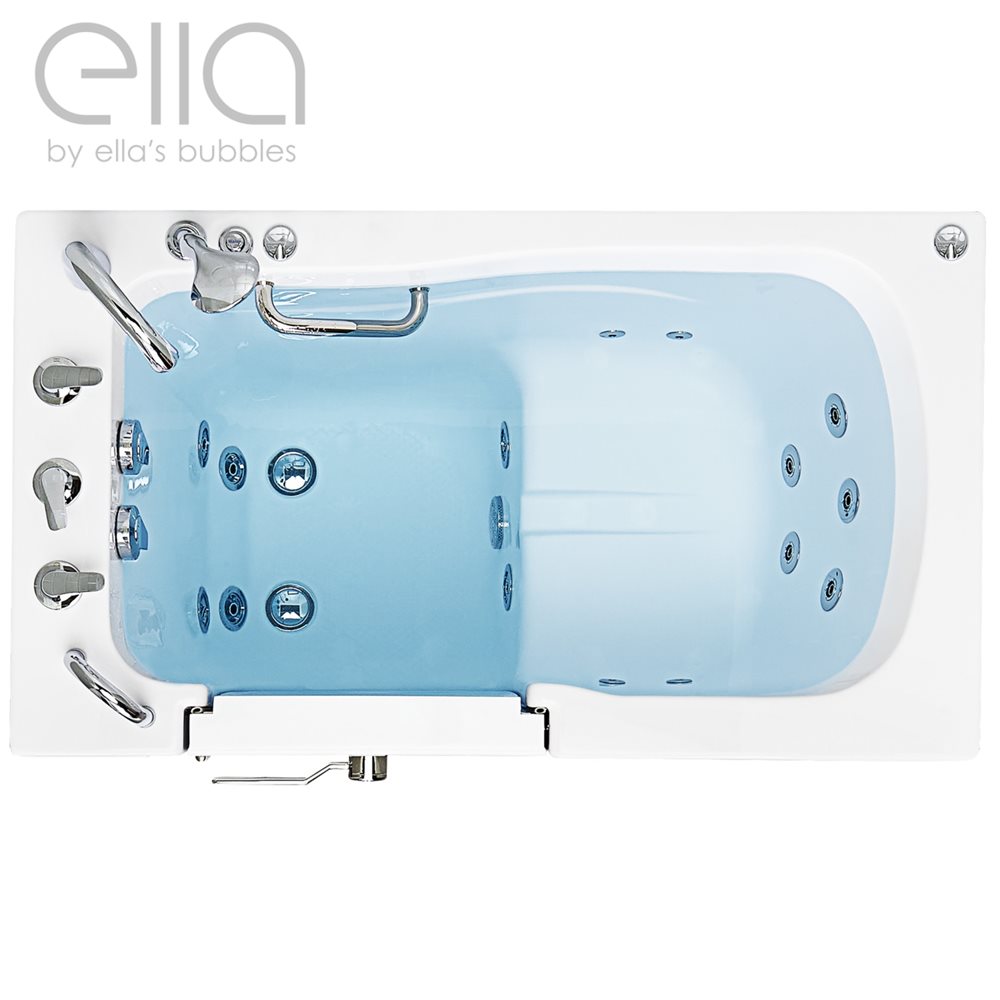

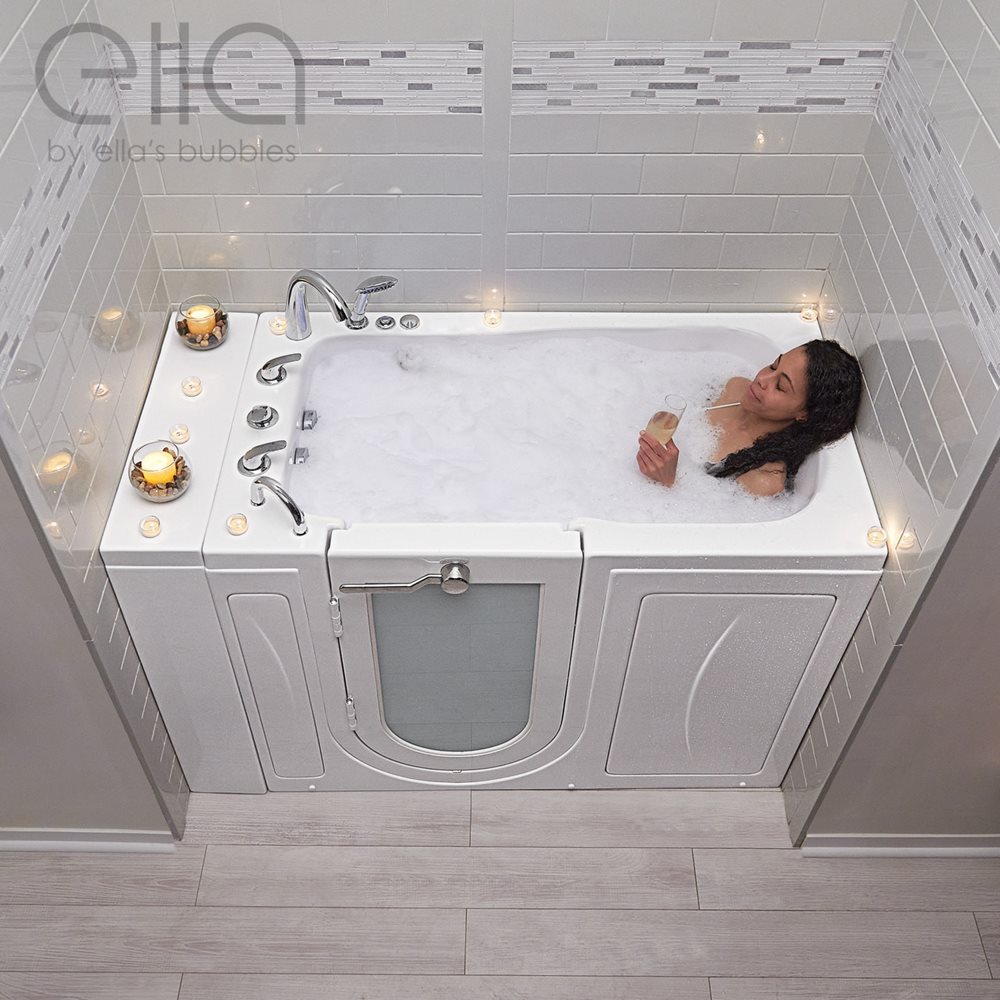

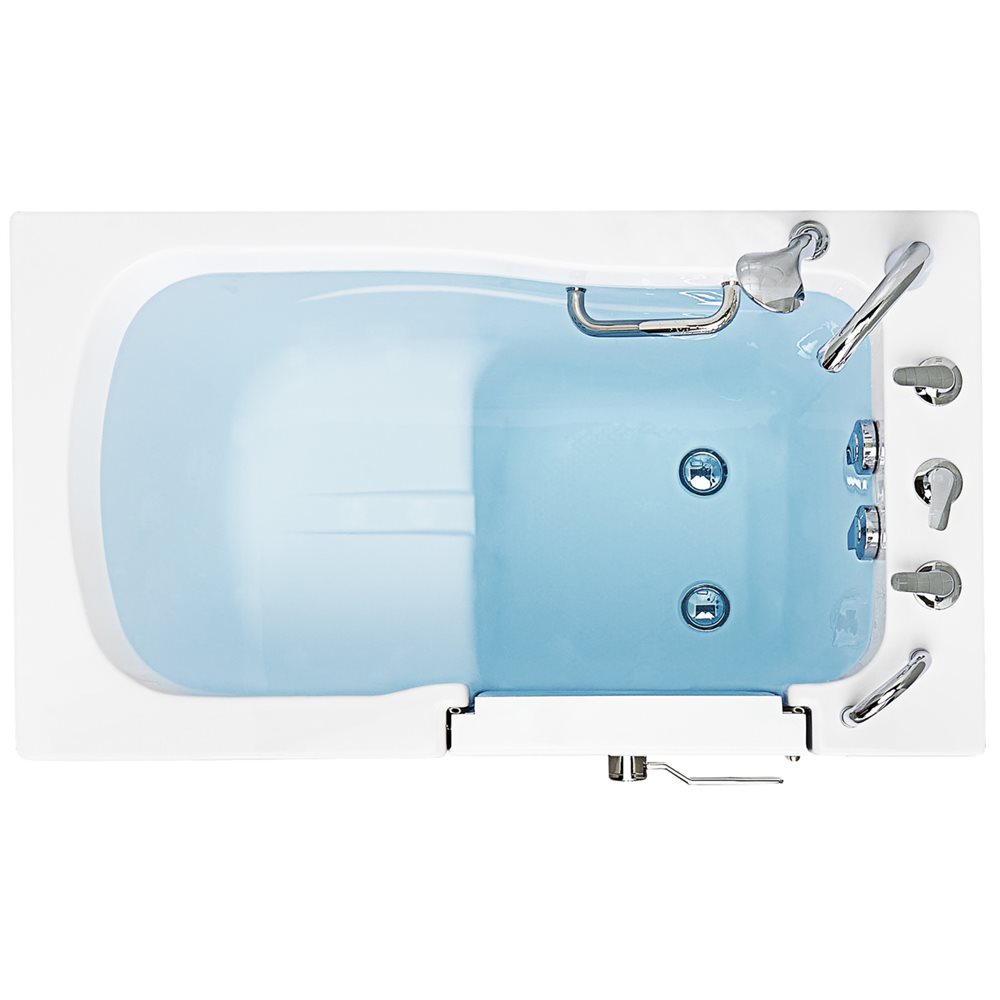

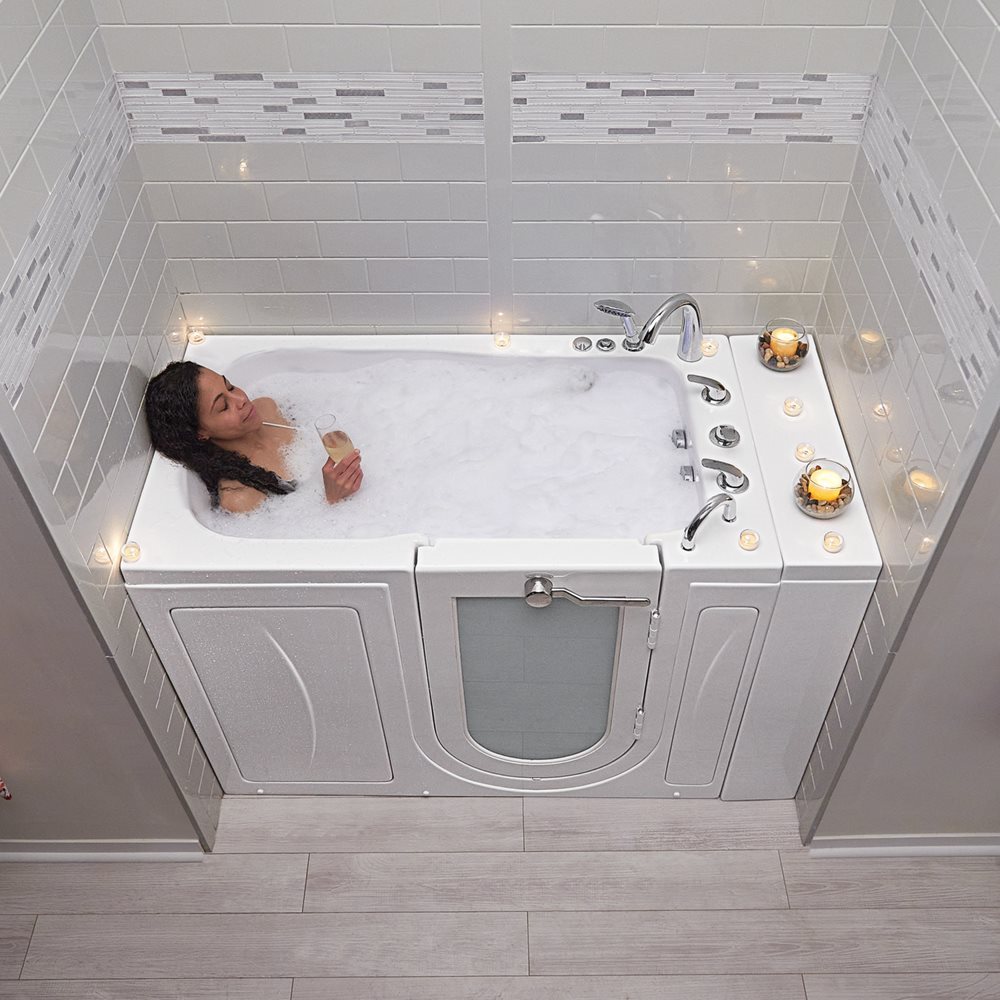

The walk-in tub shell of the Capri is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

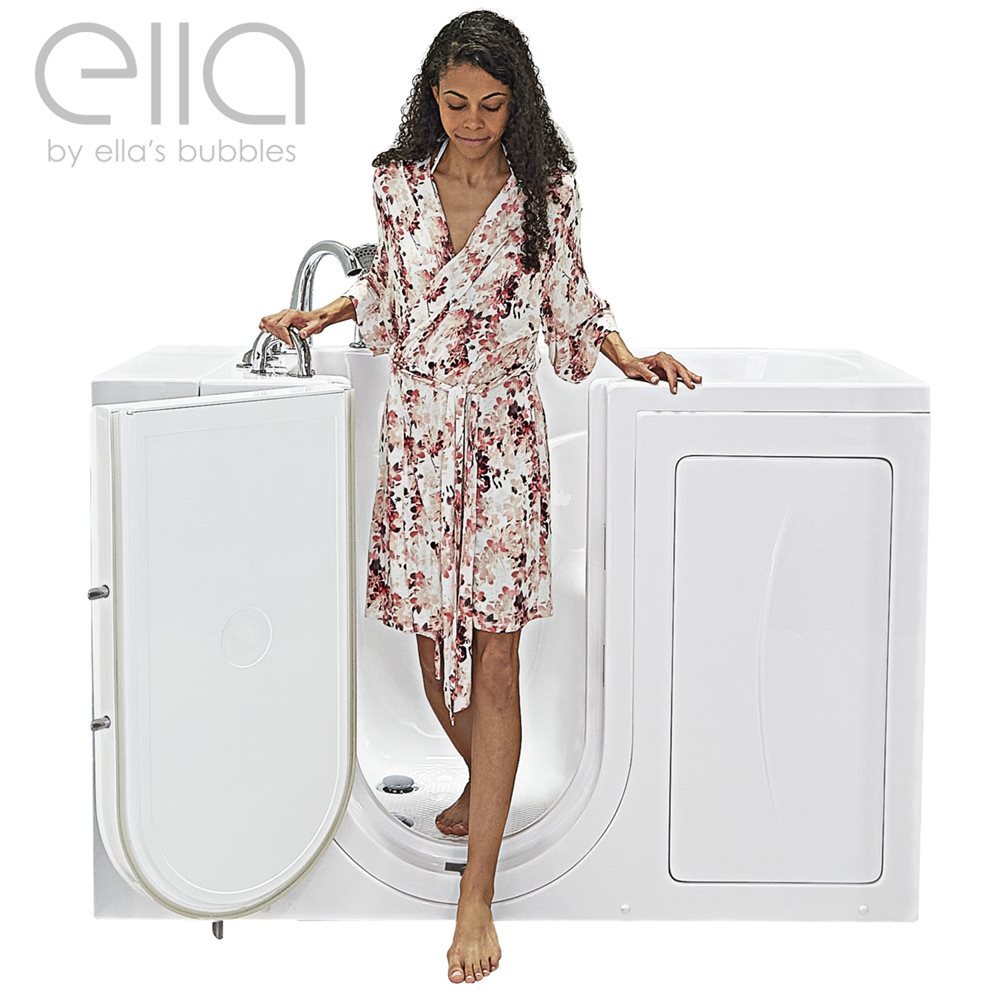

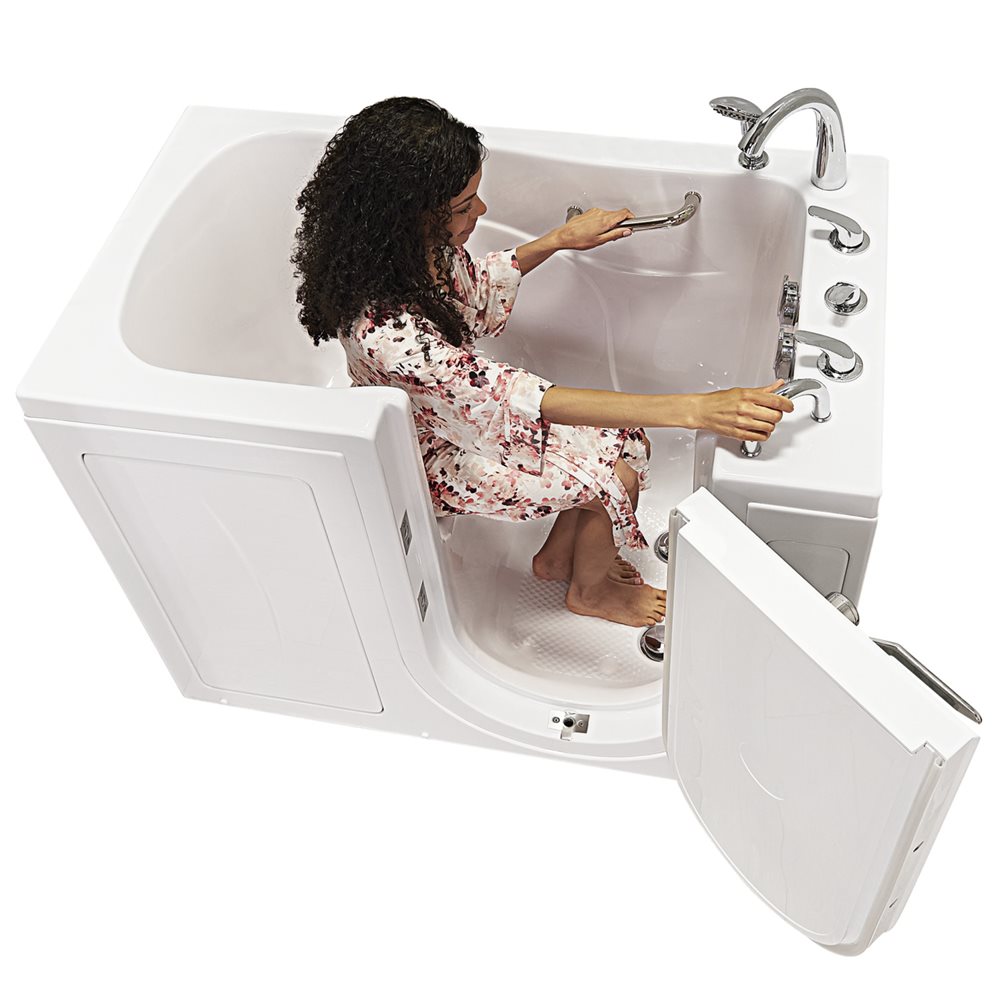

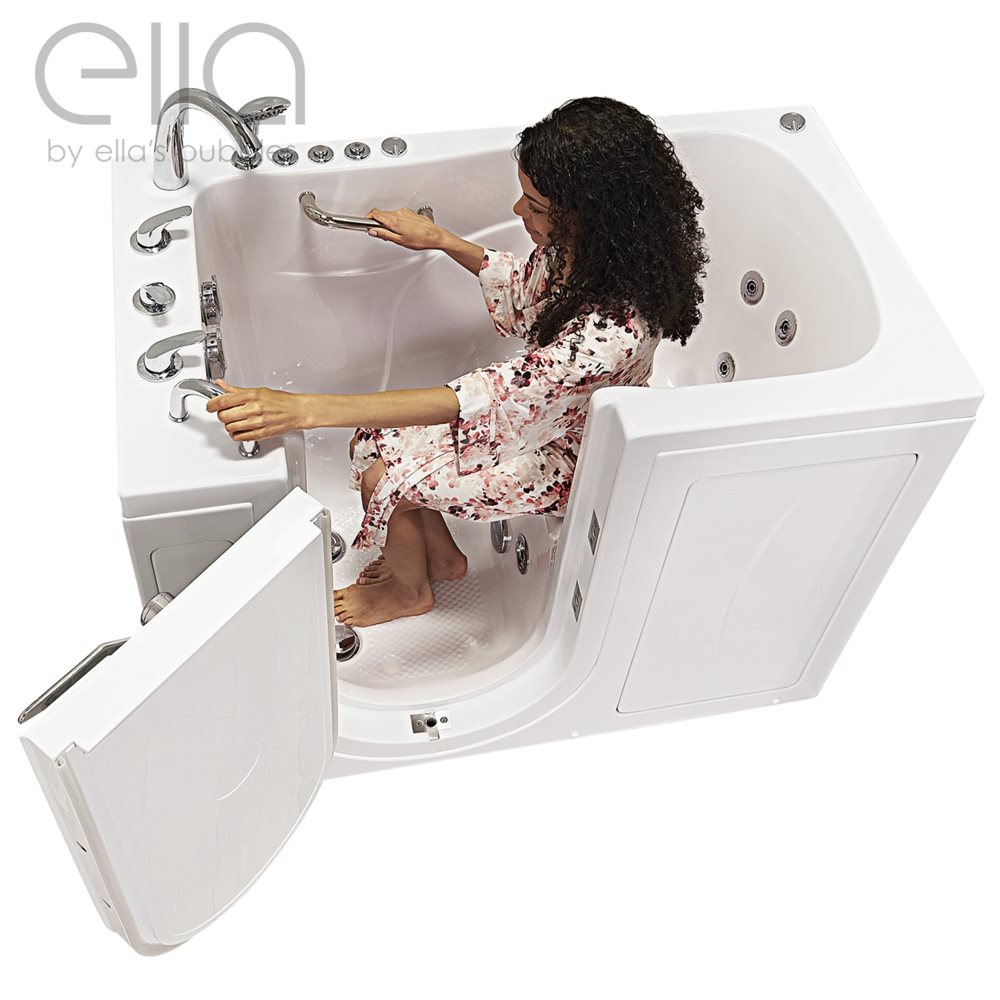

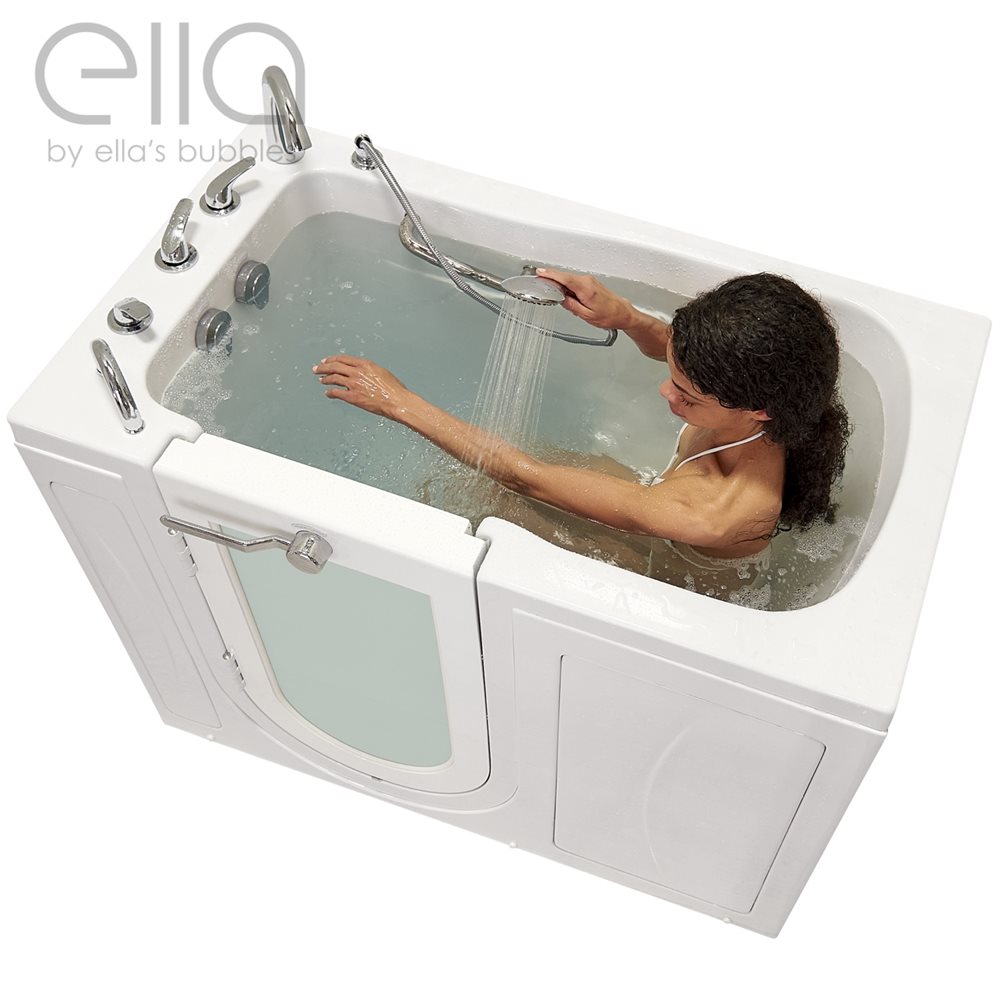

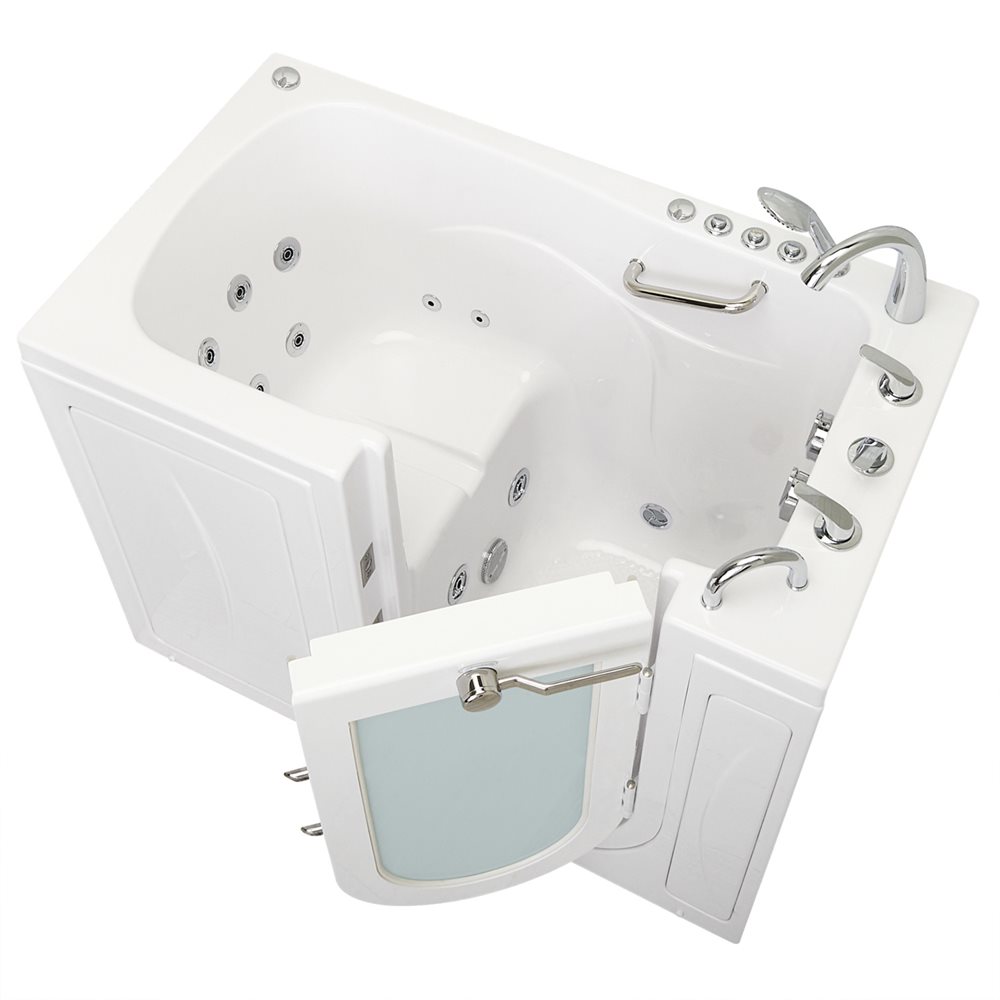

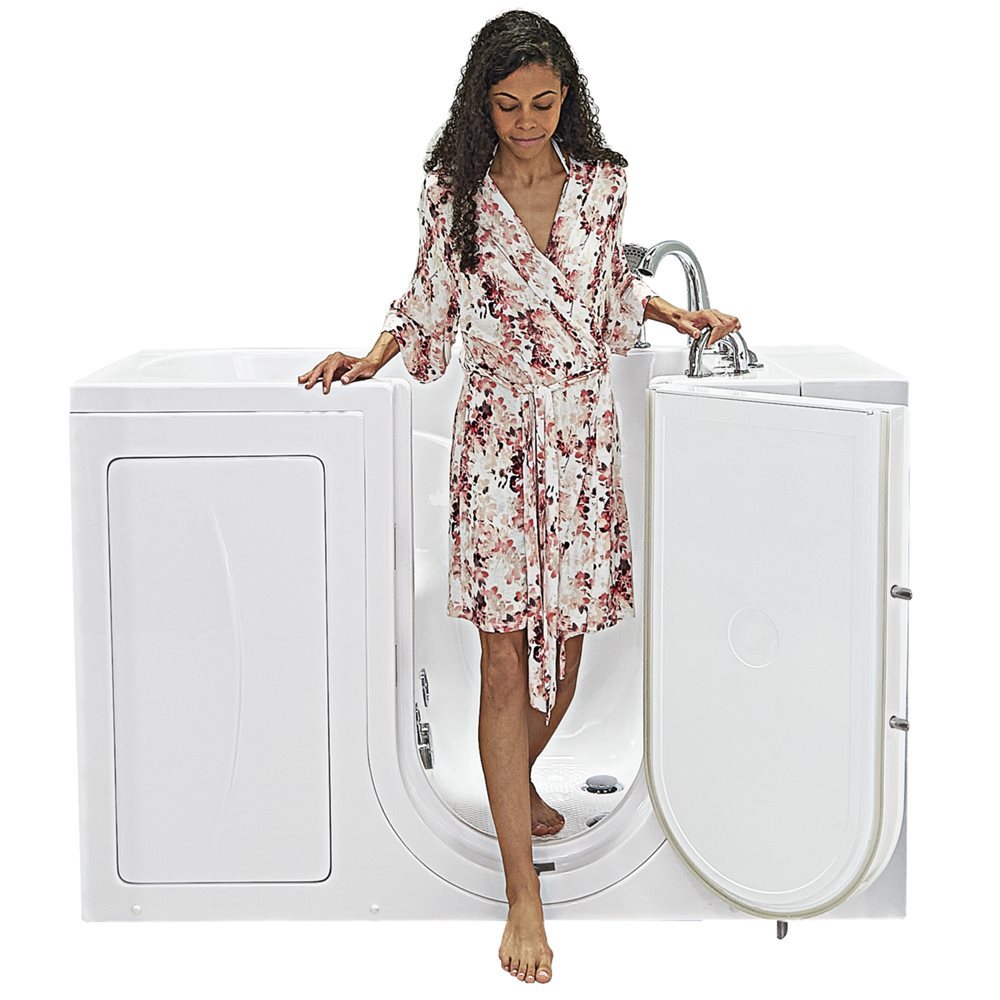

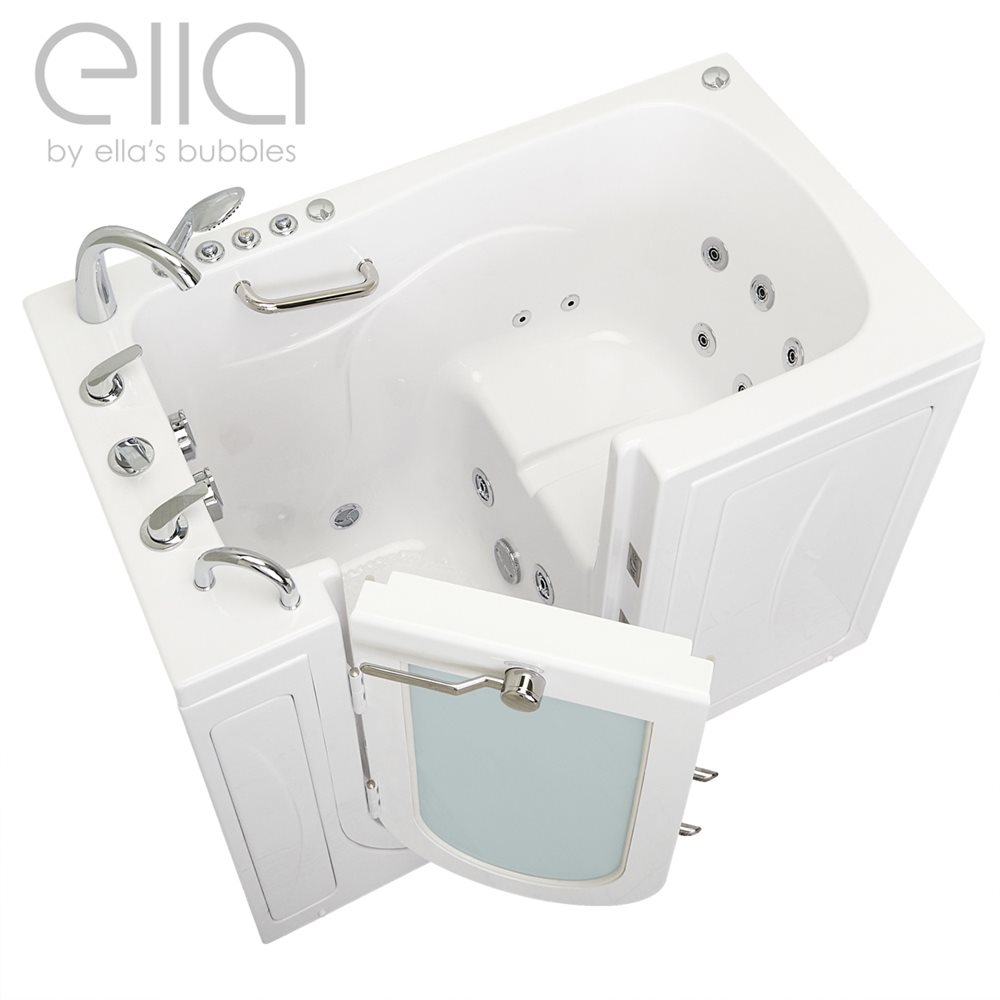

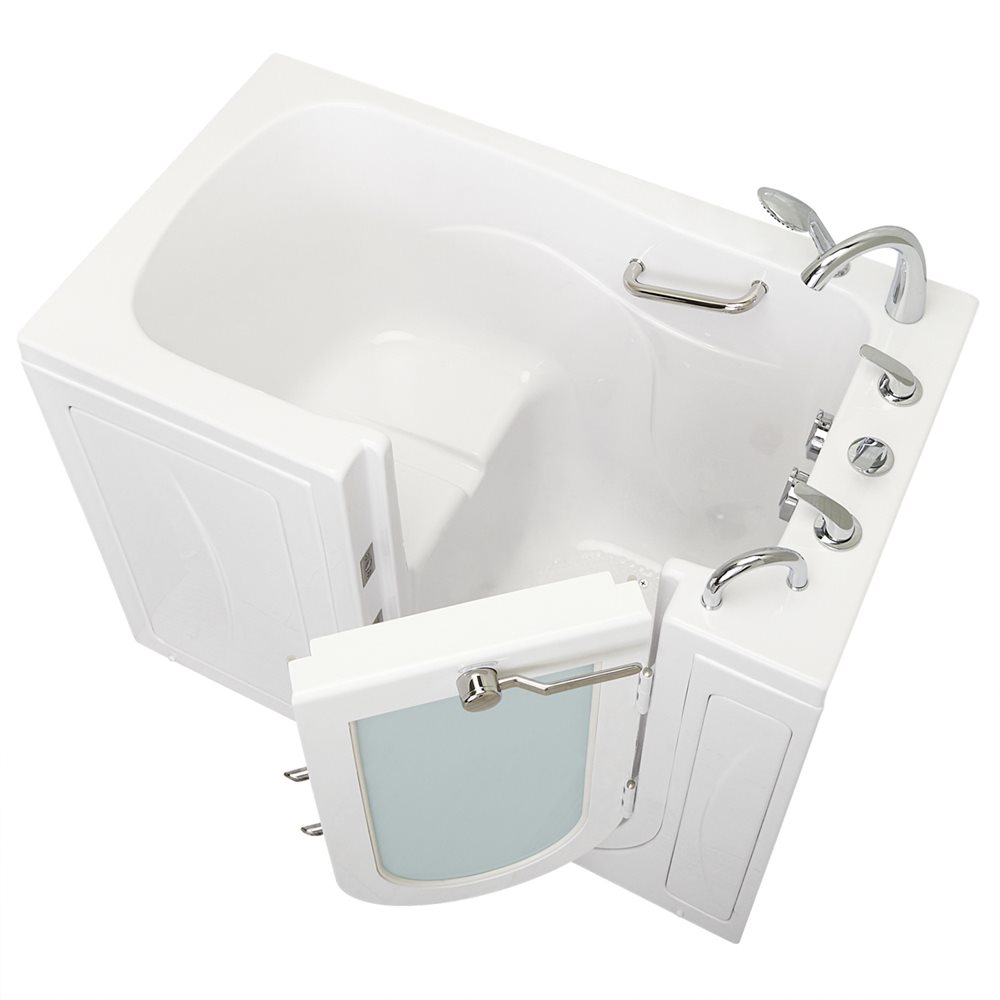

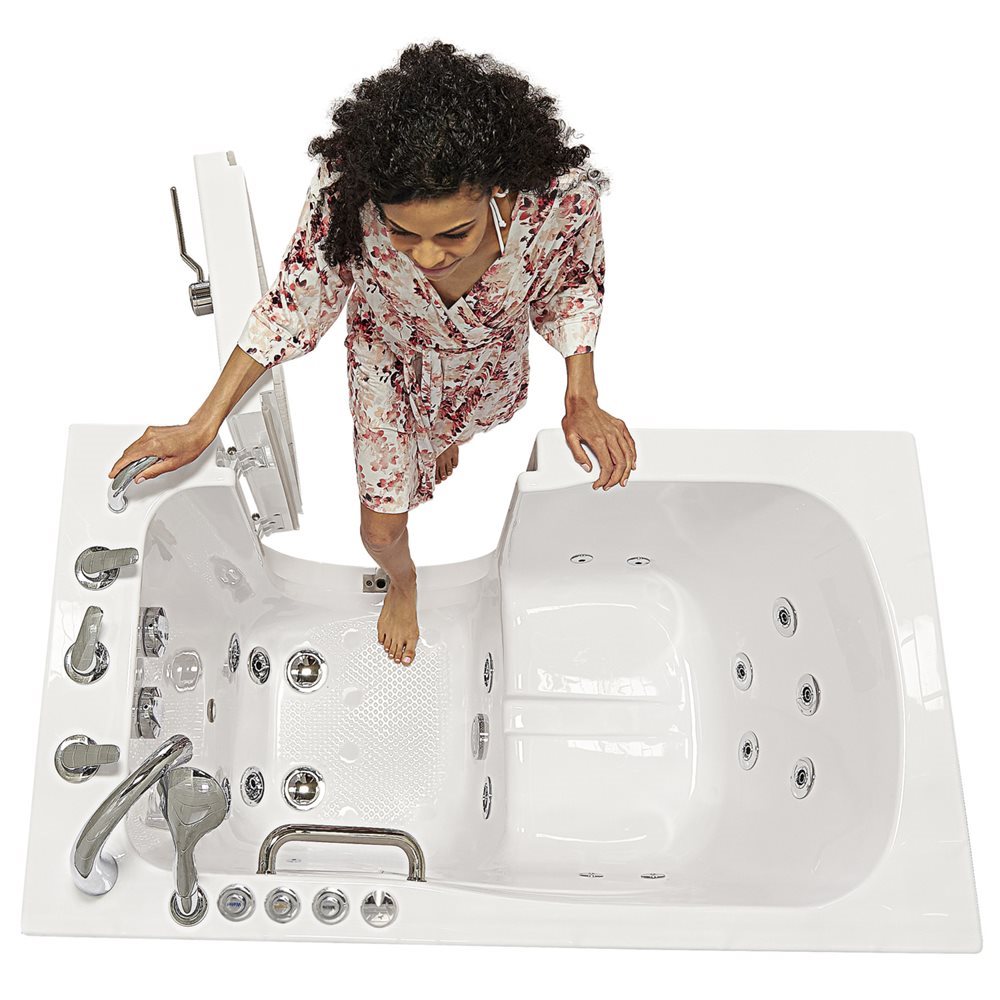

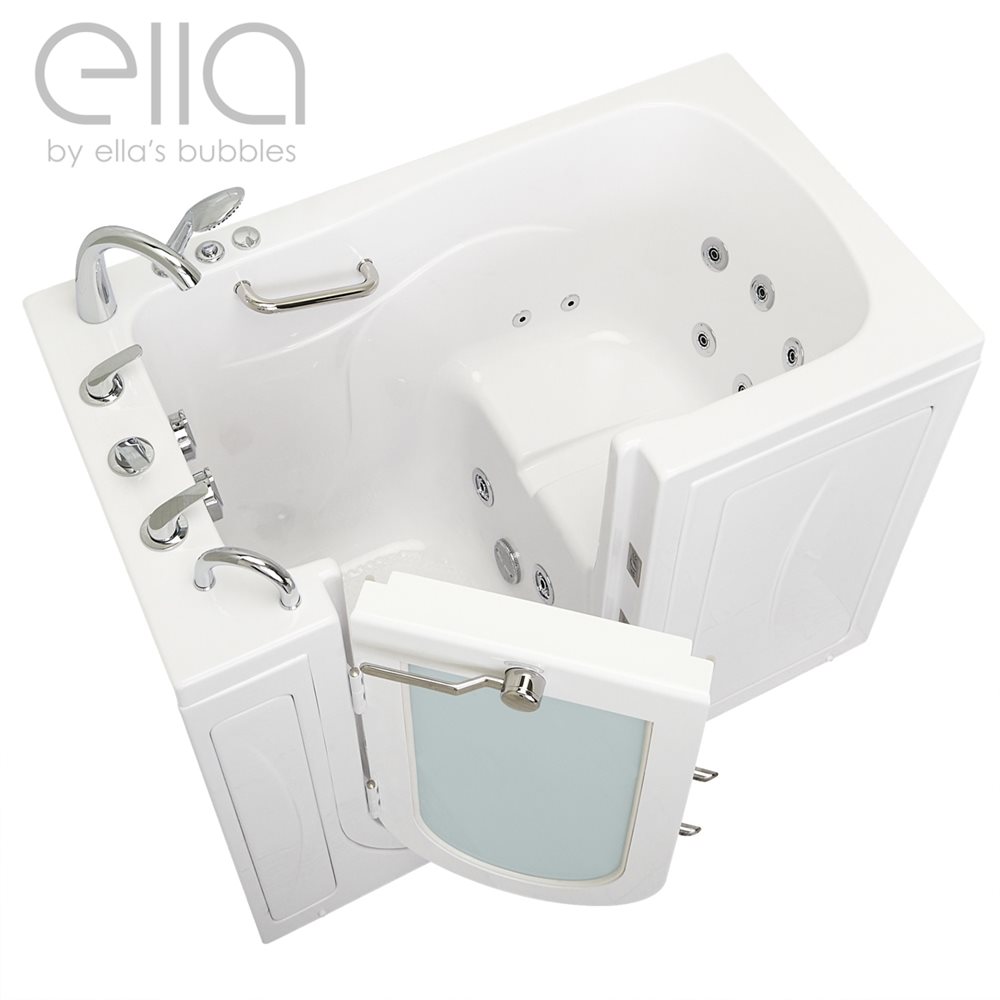

This standard size walk-in tub measures at 30”W x 52”L and has a comfortable 20” wide seat. The Capri’s main feature is the door which is made from industrial grade durable plastic composite material with a decorative tempered glass screen to conceal the mechanical door lock system. The door is 19 1/4” wide, and swings outward from the tub to allow the bathers to comfortably enter and exit the tub. The outward swing door also creates more interior space, which allows bathers to effortlessly sit into the molded seat, pull the door and lock it. Ella U-Shape outward swinging doors use a gear and shaft driven 3-latch door lock that edges out our competition, who typically use a single latch/lever system. A 3-latch door system creates a more secure and watertight door seal, providing you with a safe, leak-free bathing experience.
The Capri comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.

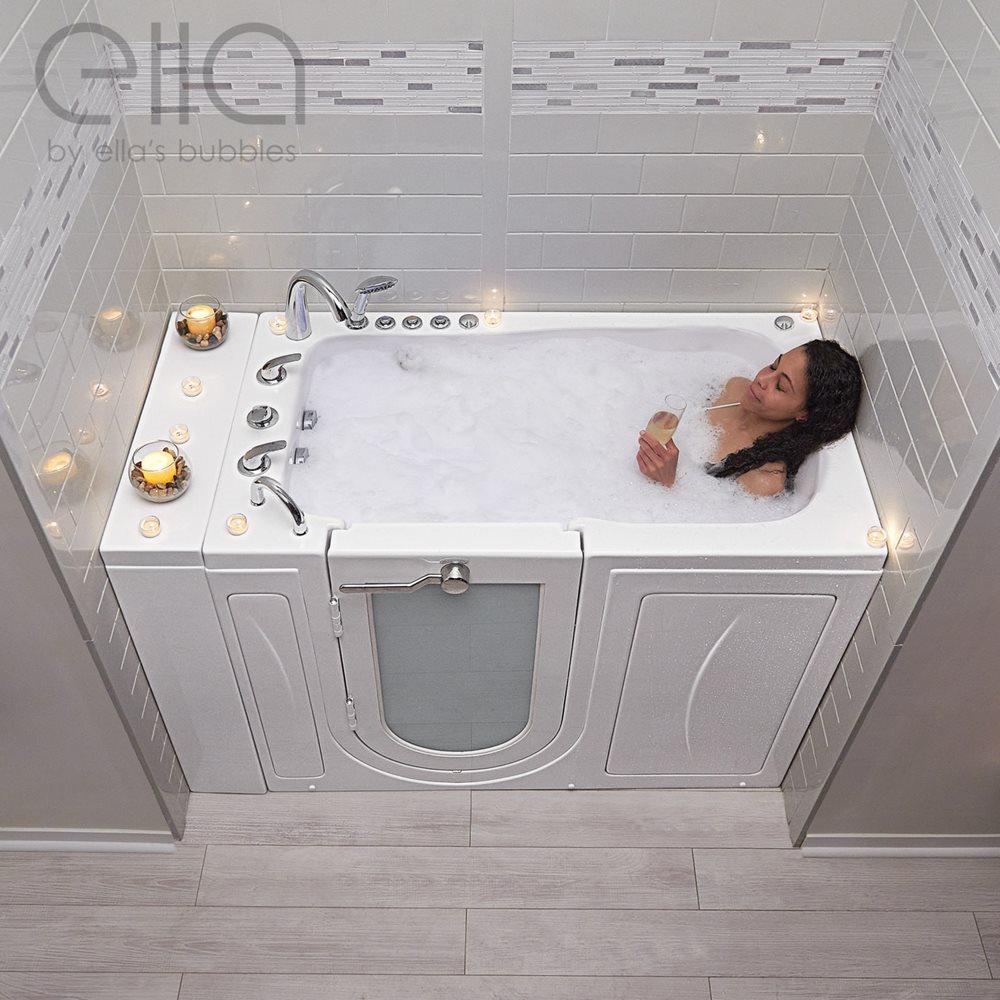

This model also includes one reversible end panel for left or right corner installation options and one extension filler panel kit for 60” alcove installations. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.
Warranty (See Downloads)
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.

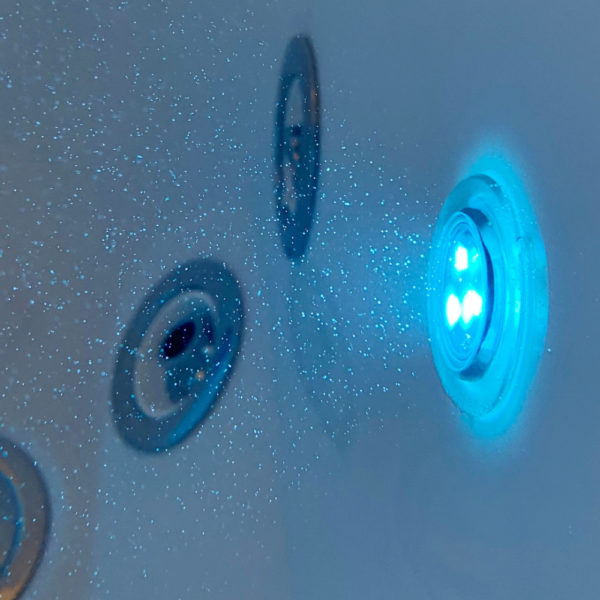

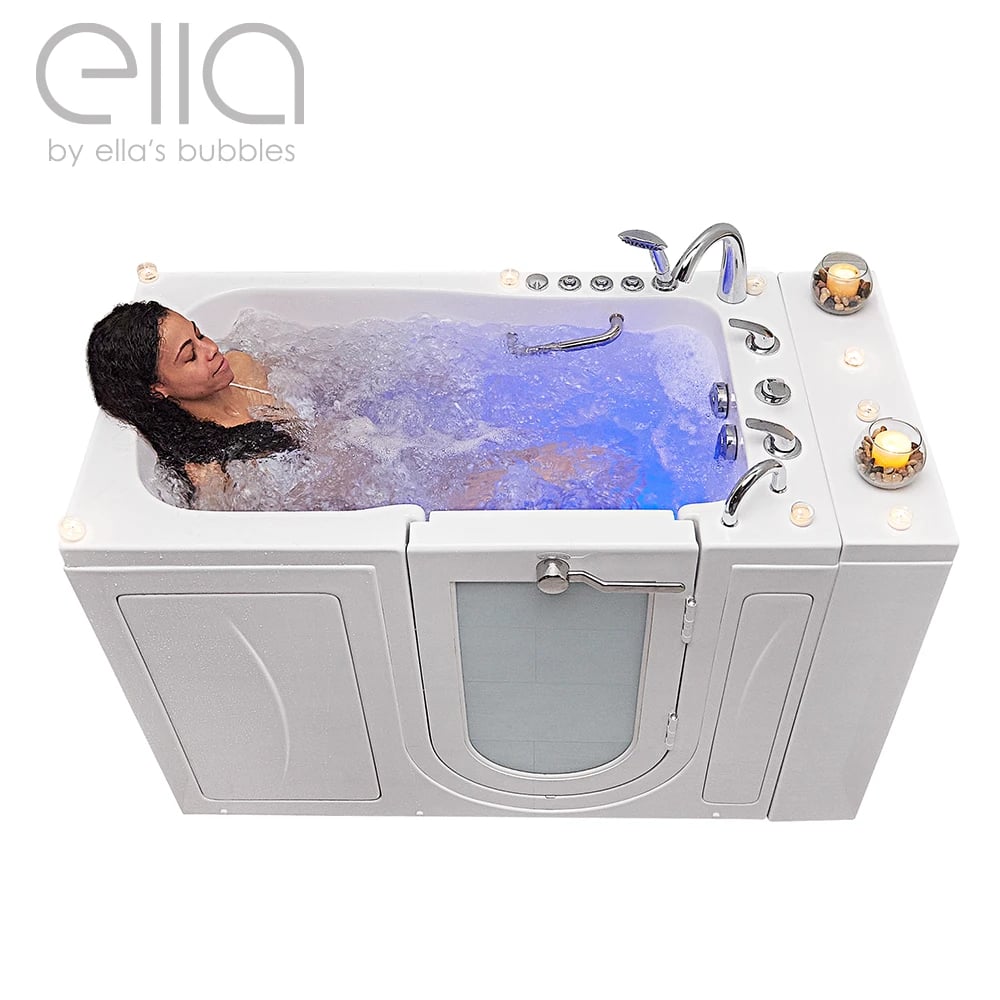

Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy

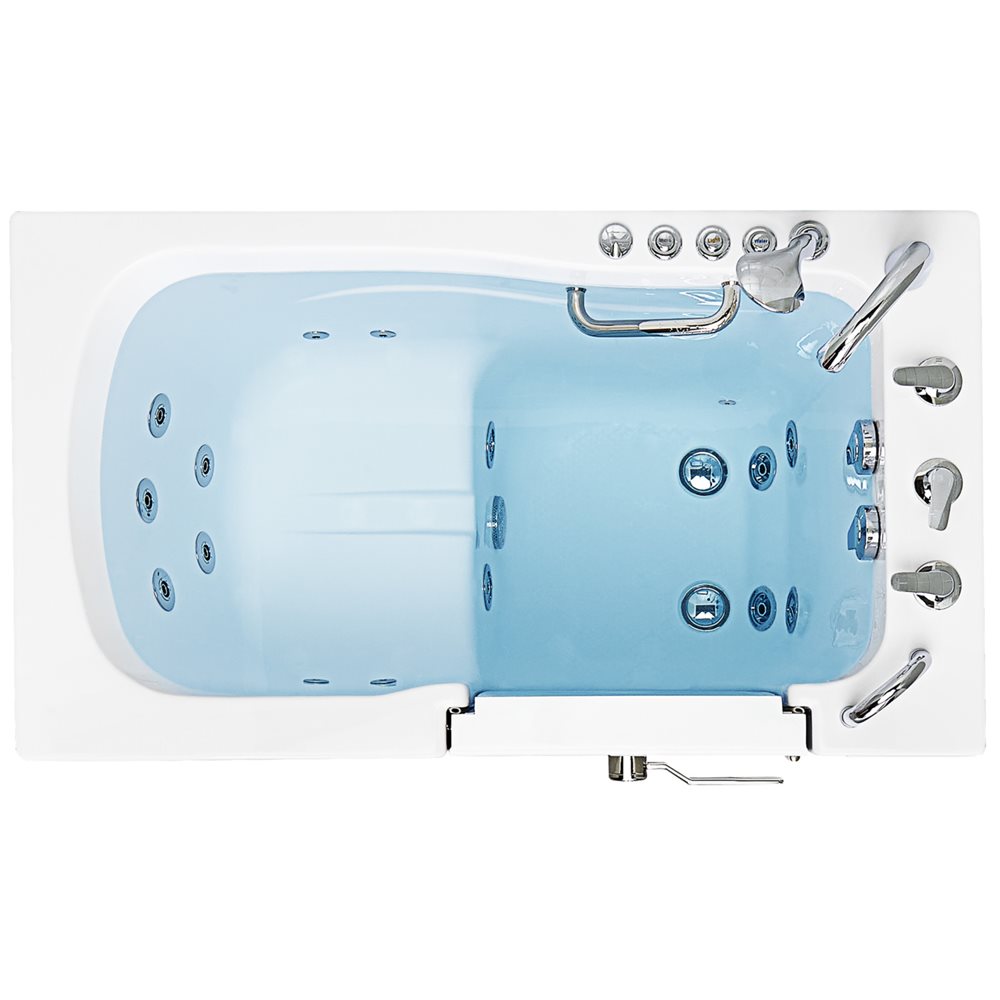

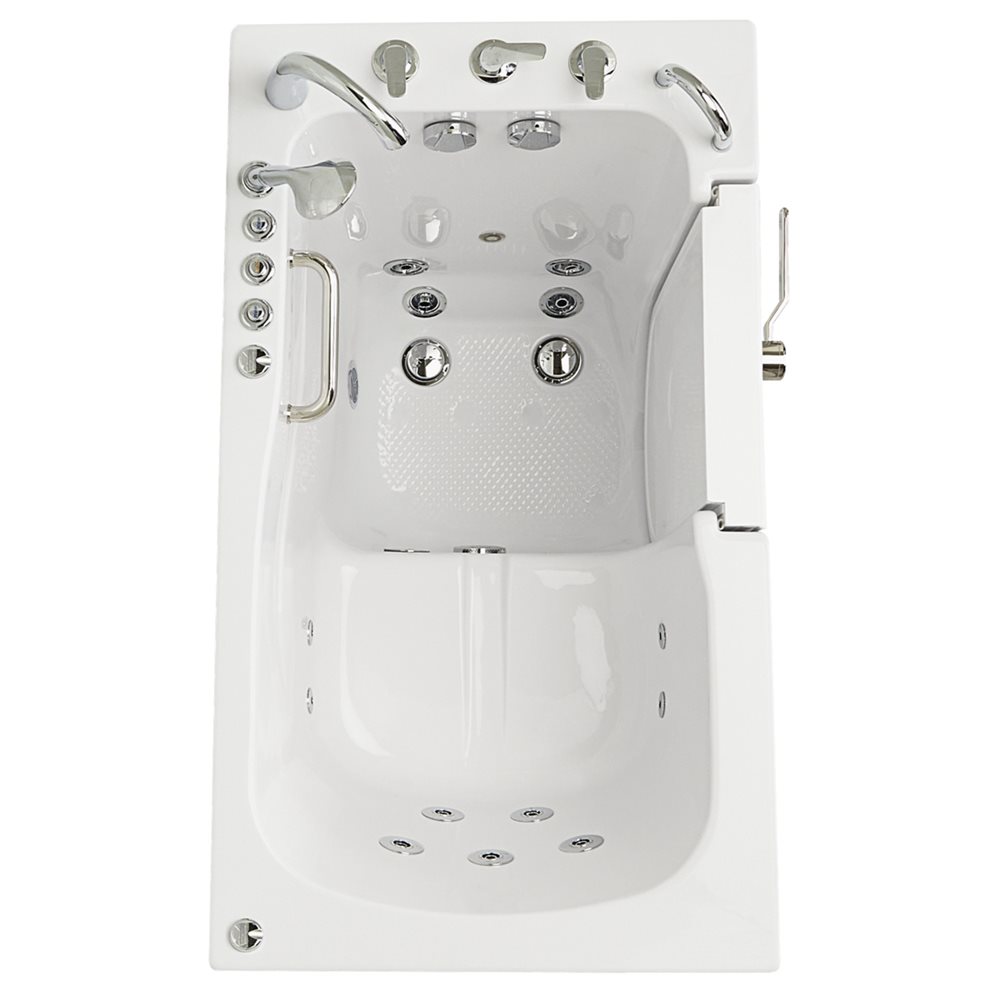

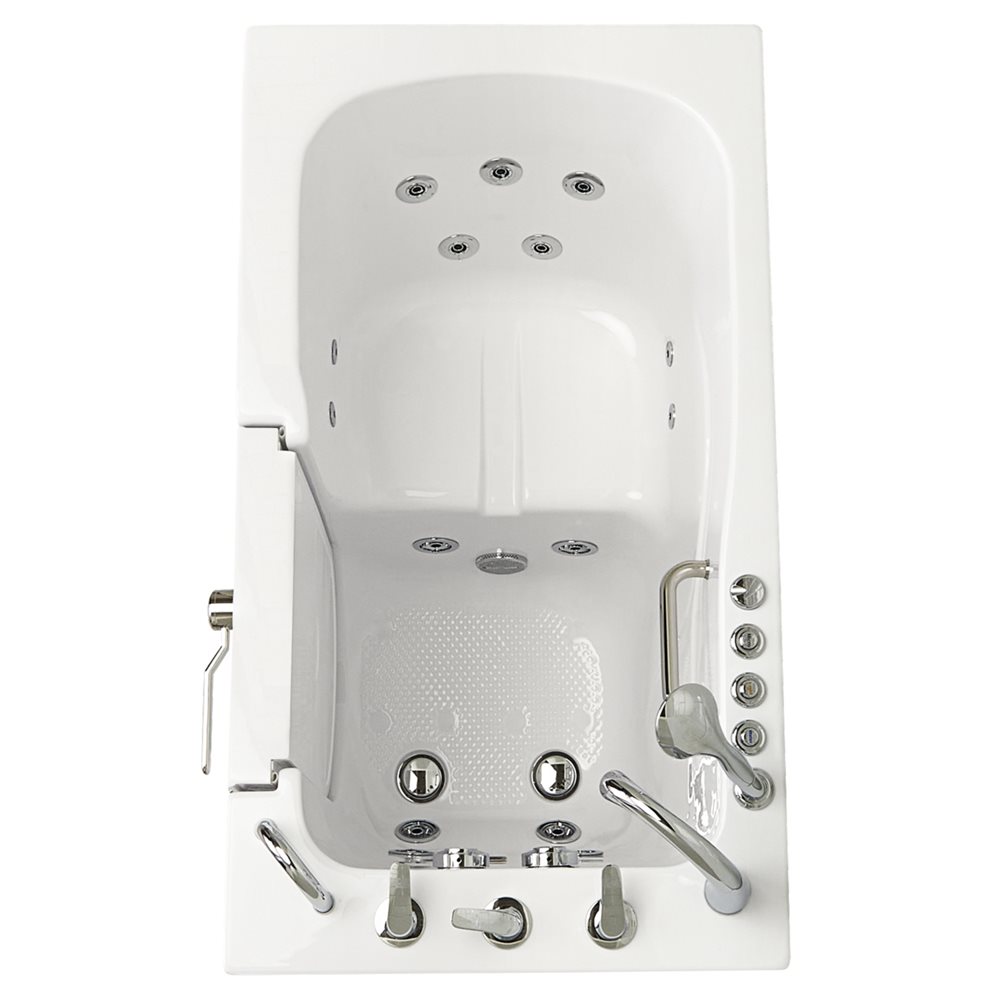

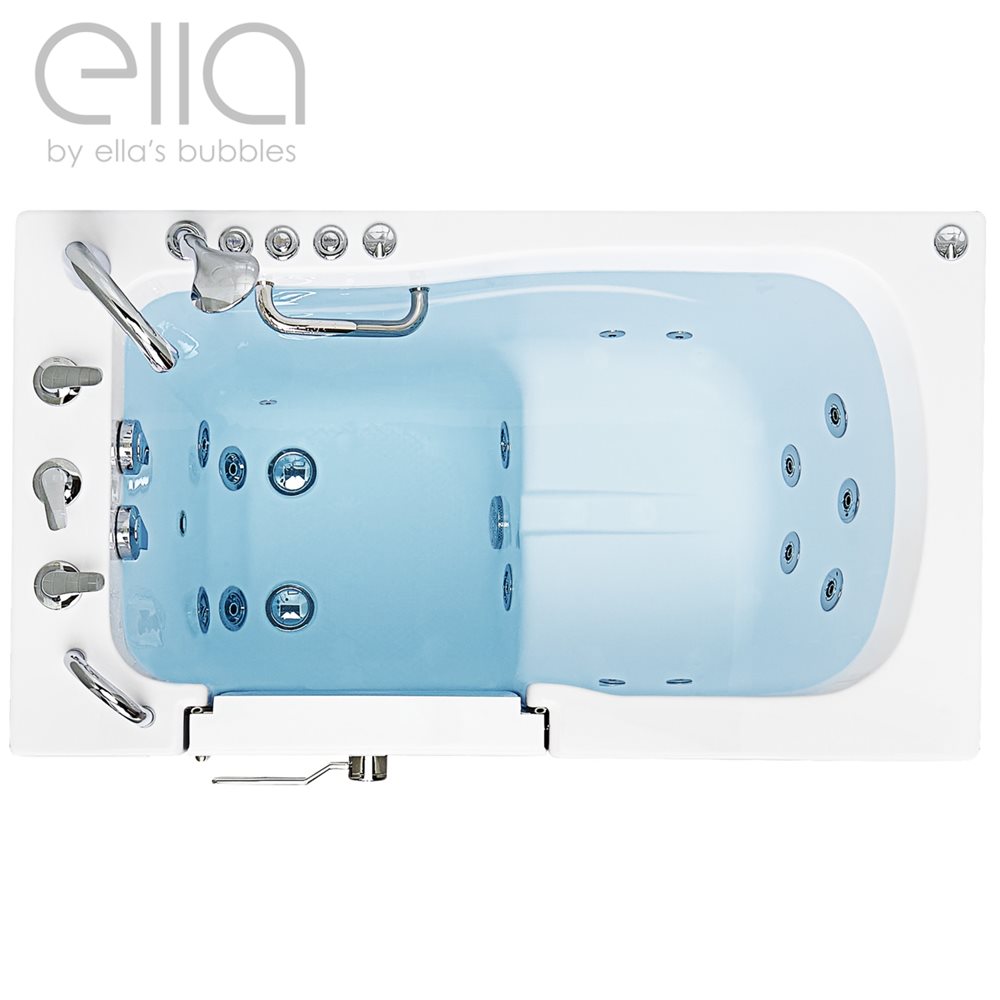

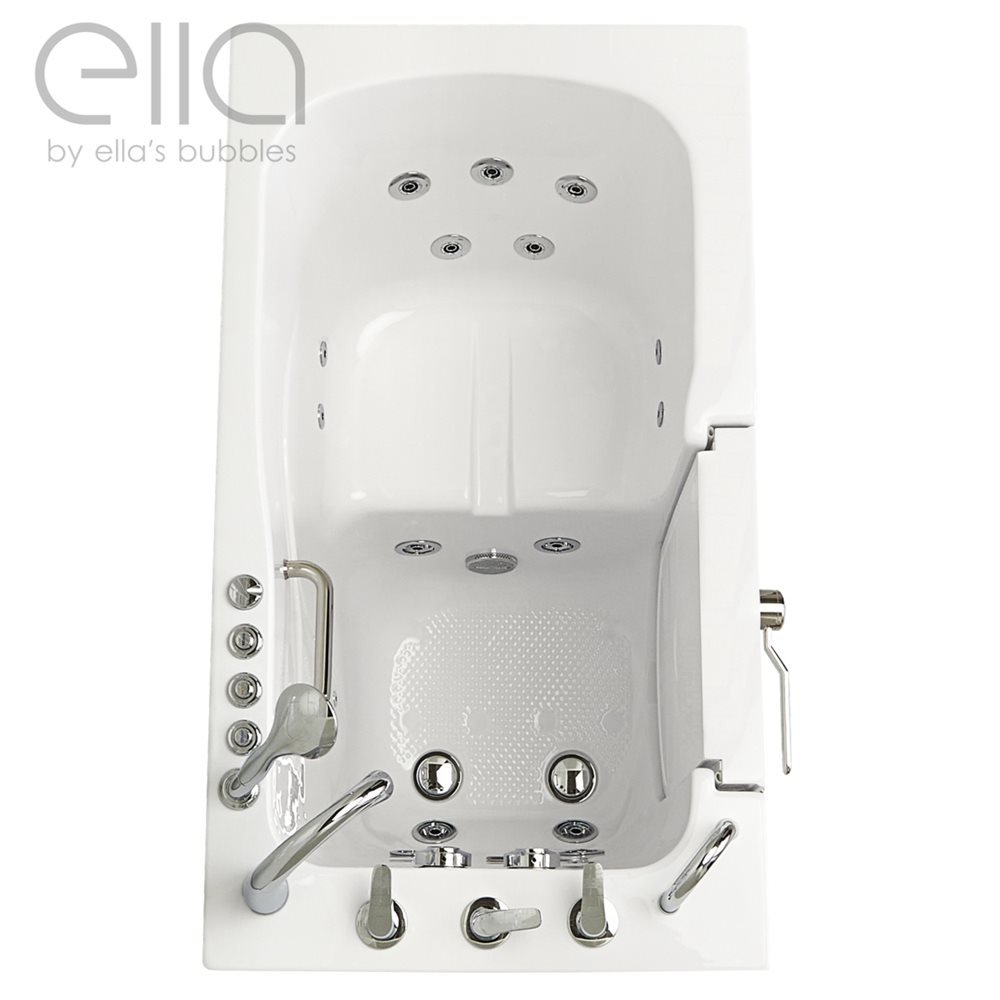

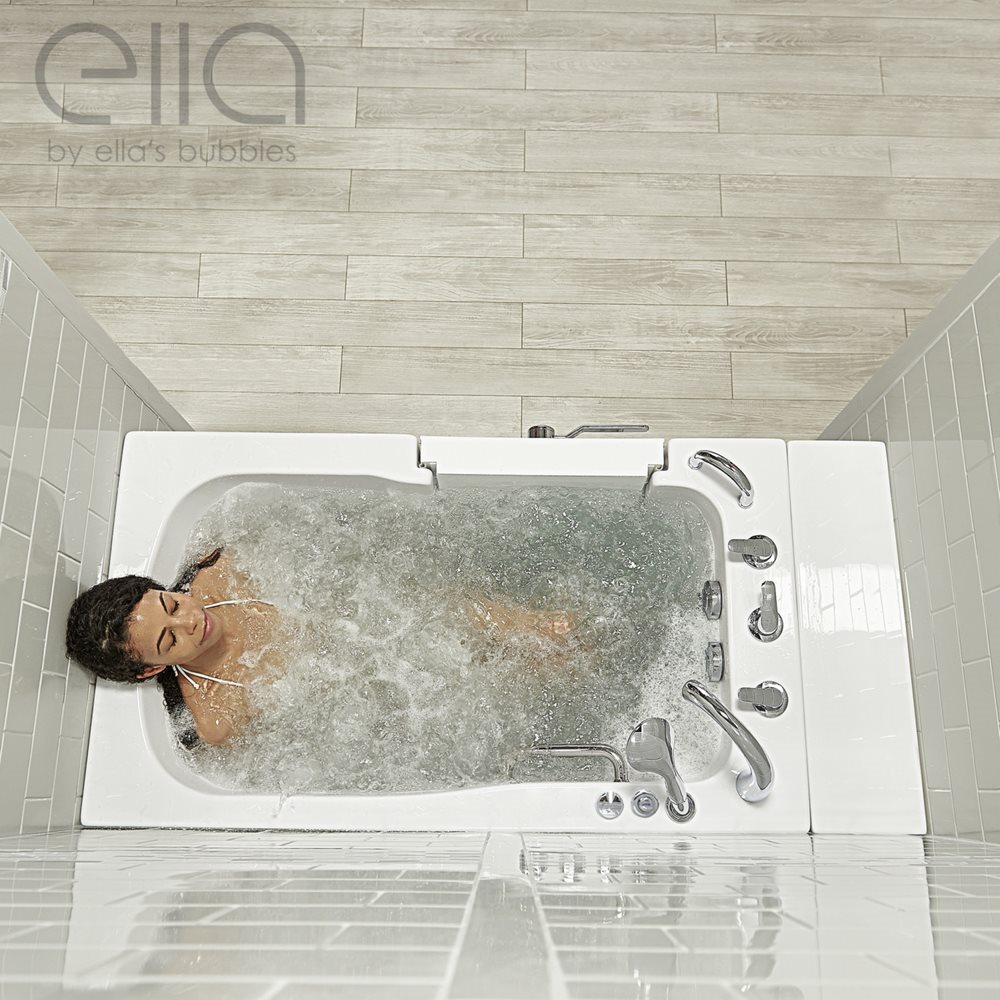

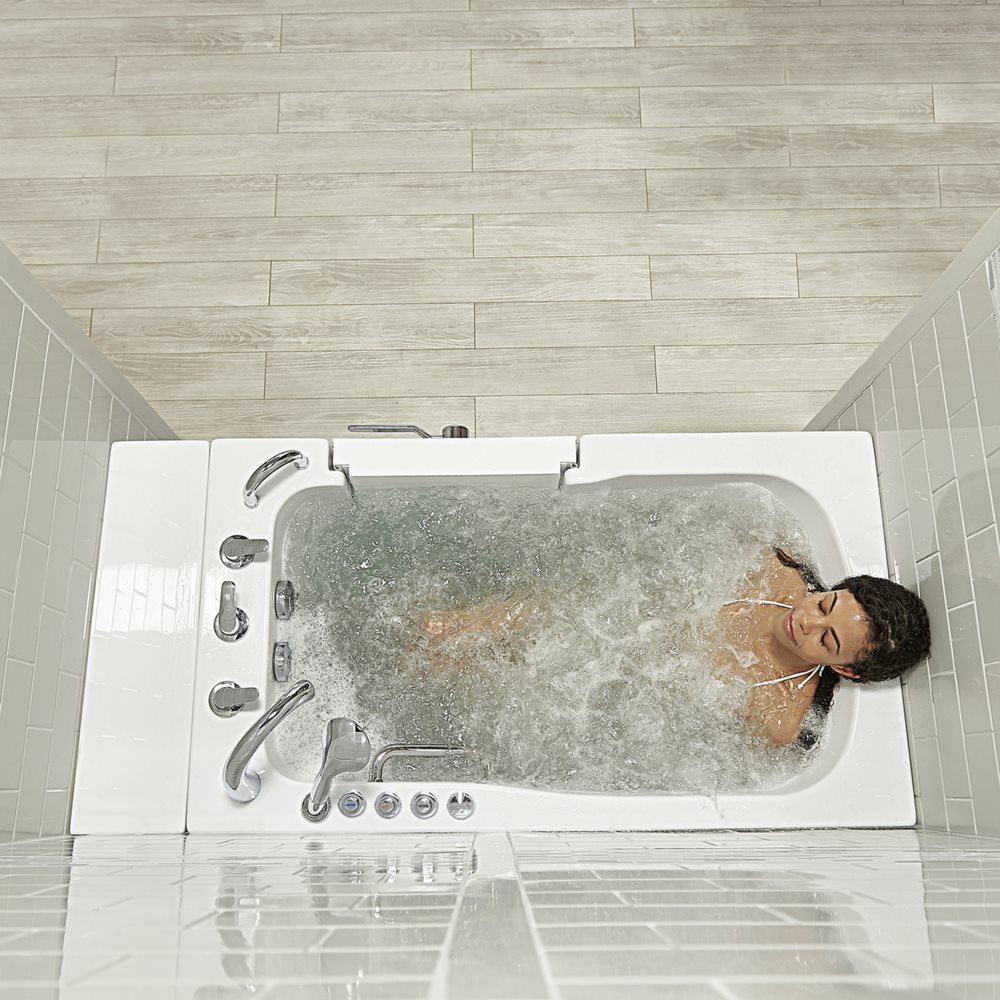

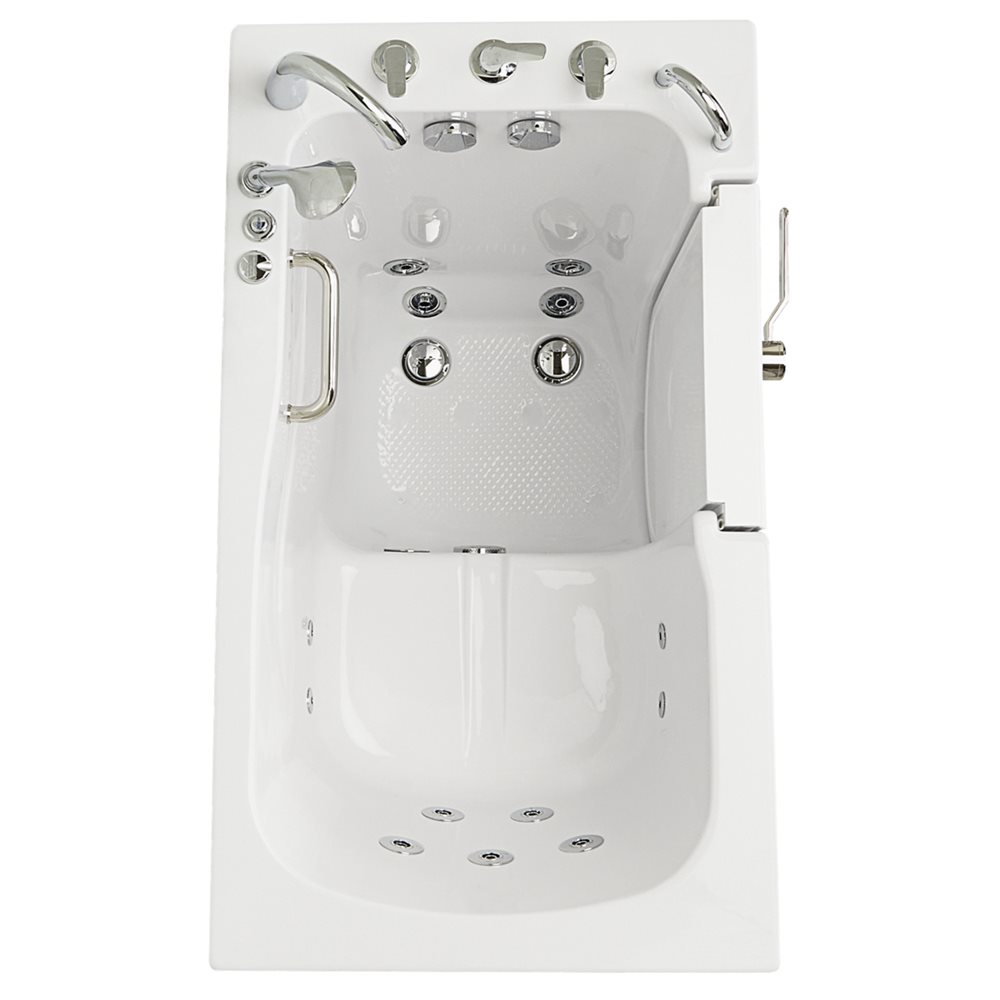

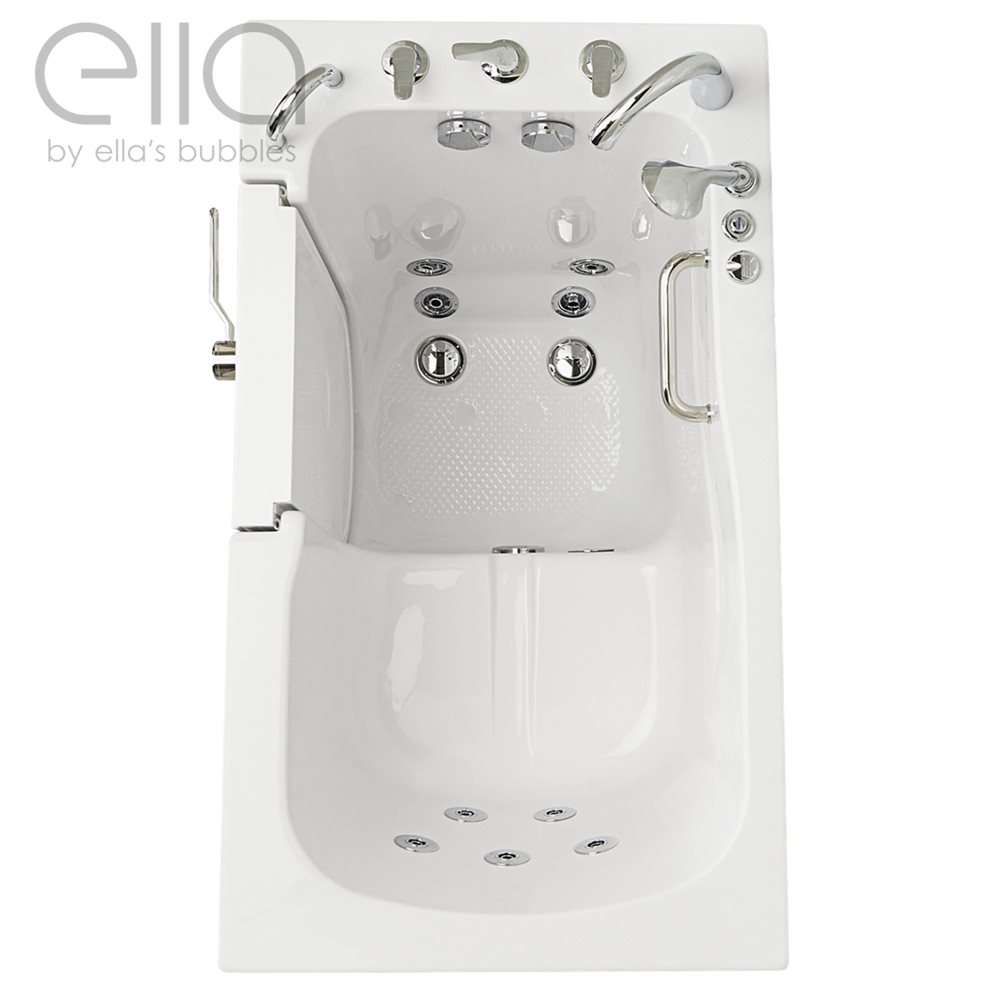

The Capri model offers 4 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage. The Capri is also available in a soaking option without jets.
Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
3. Hydro + Infusion™ MicroBubble Therapy
Download Schematics: Hydrotherapy Massage + Microbubble Therapy
4. Hydro + Independent Hydro Foot Massage System
Download Schematics: Hydrotherapy + Independent Hydro Foot Massage
Therapy Options + Heated Seat & Back Option
Download Schematics:
1. Hydrotherapy + Heated Seat & Back
2. Hydrotherapy + Air + Heated Seat & Back
3. Hydrotherapy + Microbubble Therapy + Heated Seat & Back
4. Hydrotherapy + Independent Hydro Foot Massage + Heated Seat & Back
1. Ella 5 Piece Fast Fill Faucet

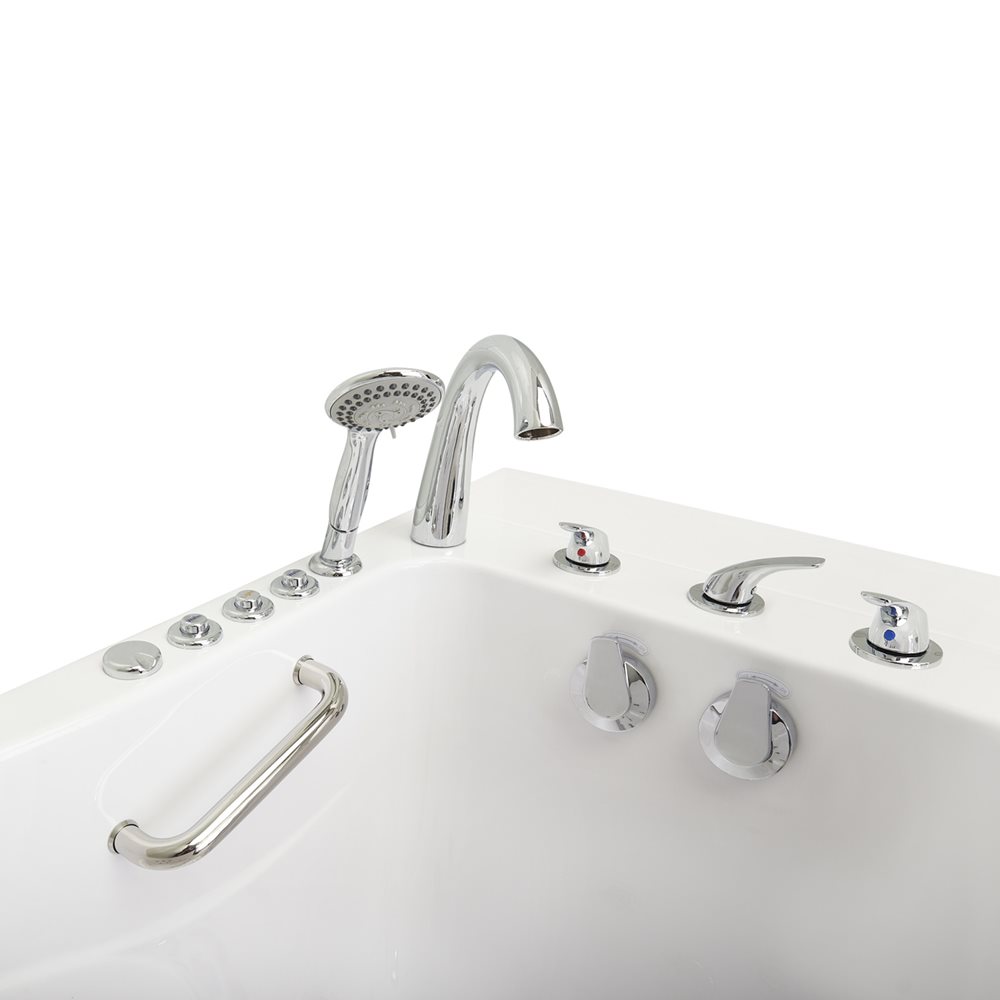

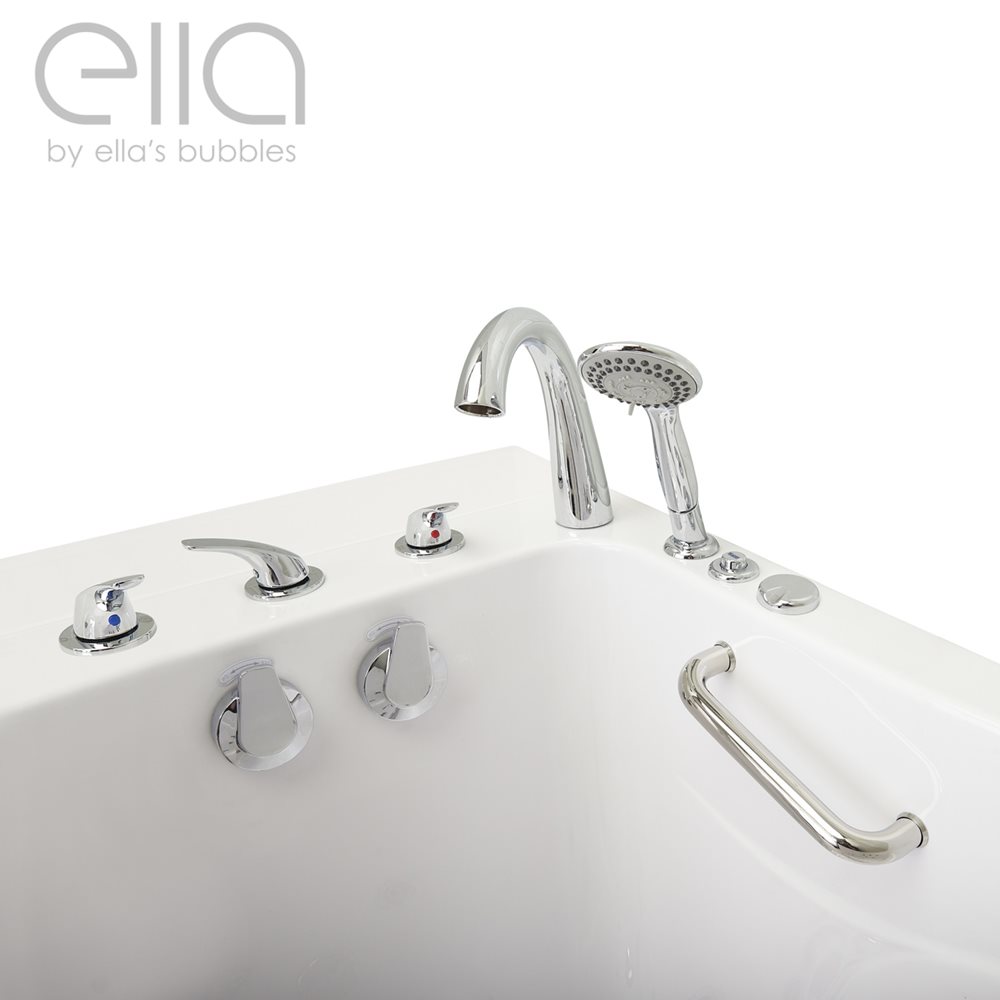

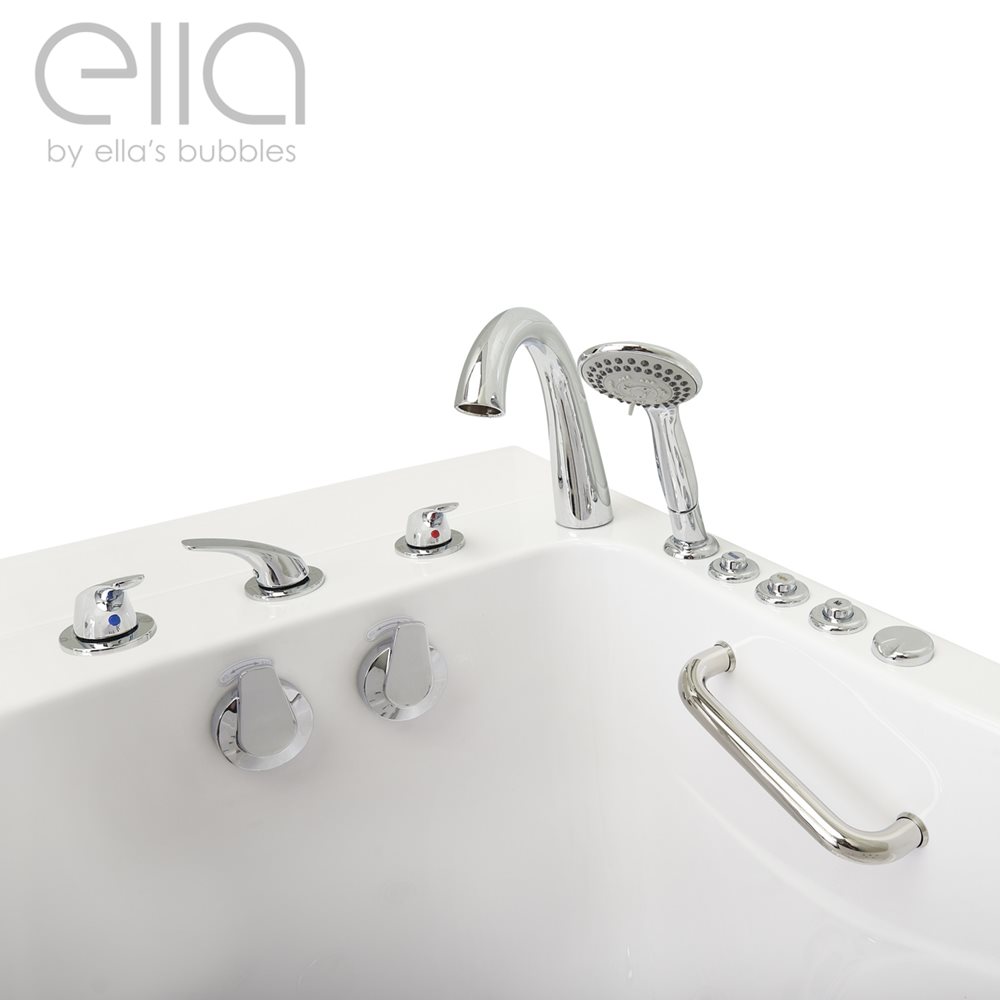

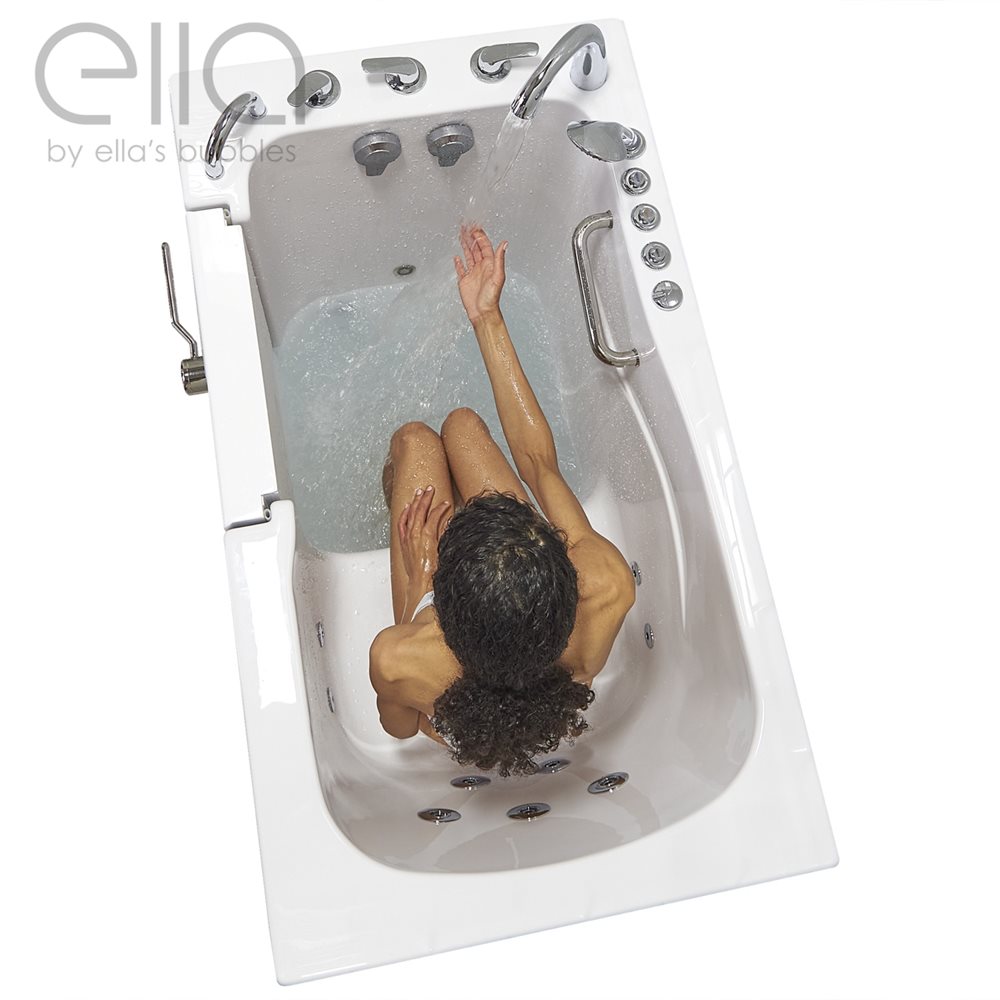

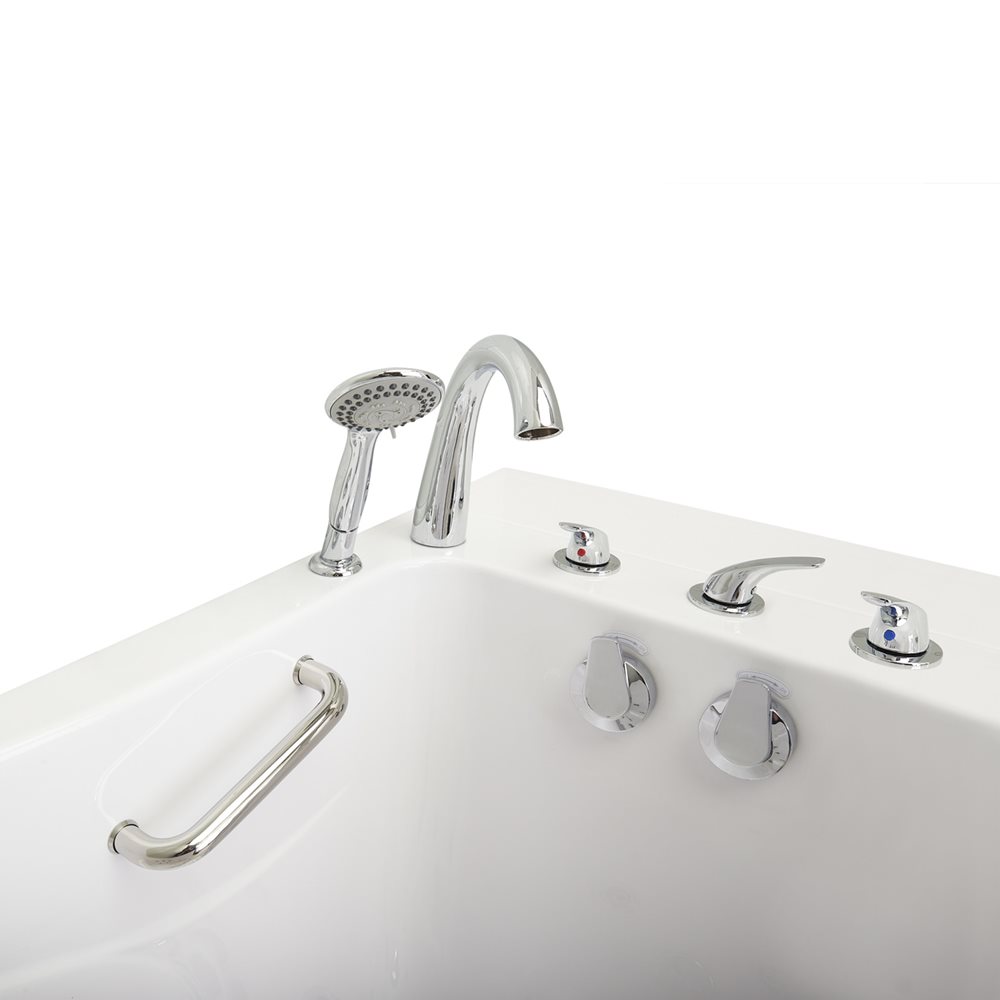

The Ella 5 Piece ¾” Fast Fill Faucet with pull out multi-function hand shower in chrome finish is perfect for your walk-in bathtub or any bathtub where fill time matters. The fast fill 5-piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull-out hand shower can be used for showering while the bathtub is filled to stay warm. Available in a Chrome or Brushed Nickel finish.
Disclaimer: Only the faucet can be ordered in brushed nickel. All other fixtures, including jets, drain openers, and grab bars, will be in chrome.
2. Complete Shower Column Kit For Deck Mounted Faucets
The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Heated Seat & Back
Available on all Ella walk-in tubs, the NuWhirls CozyHeat Heated Backrest & Seat system helps keep you comfortable and warm while your tub fills. The heating cables are encased in a multi-layer mesh blanket, bonded together through a heat press process, providing excellent mechanical strength and a long lasting, durable design. Advanced radiant heaters provide soothing comfort directly to the surface, allowing for a heated seat and backrest. With its warm touch, it delivers the ultimate in comfort, relaxation, and health benefits. Operated by an on/off Push Control or Digital Control, the heated backrest and seat is activated in minutes, keeping users cozy and relaxed from the moment they enter the tub.
The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit dual drain technology.
Our gear and shaft-driven 3-latch door significantly outperforms conventional single latch systems, offering a more secure, watertight seal, ensuring a leak-free bathing experience. This innovative mechanism provides smoother operation, reduces wear and tear, and facilitates easier alignment and locking, greatly enhancing both safety and ease of use, establishing a new standard in secure door design.

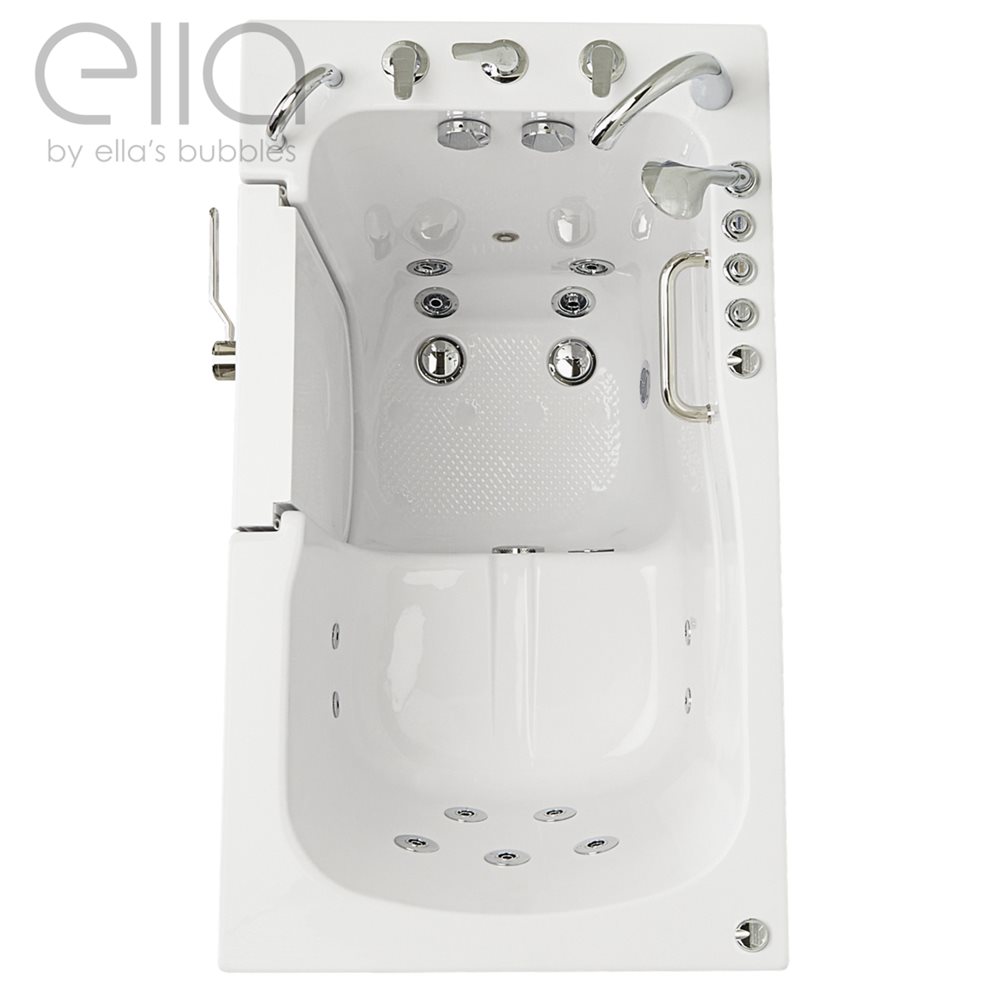

Ella walk-in tubs are equipped with 4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation. These jets are strategically positioned in the lowest possible area of the floor for bathers to enjoy a powerful foot massage in a relaxed position. No need to fill the whole tub, the foot well fills in just a couple of minutes!
