Select a tab below to learn more ▼
Soaking (No Jetting)

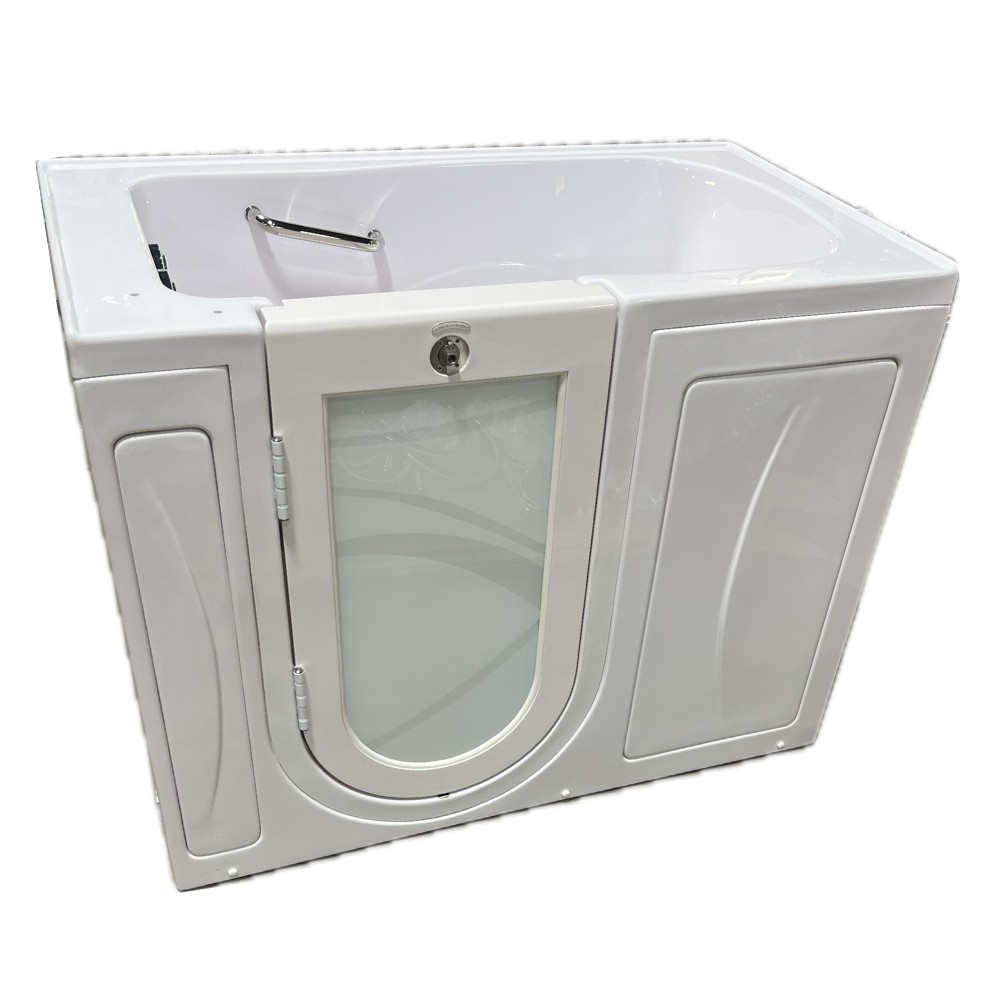

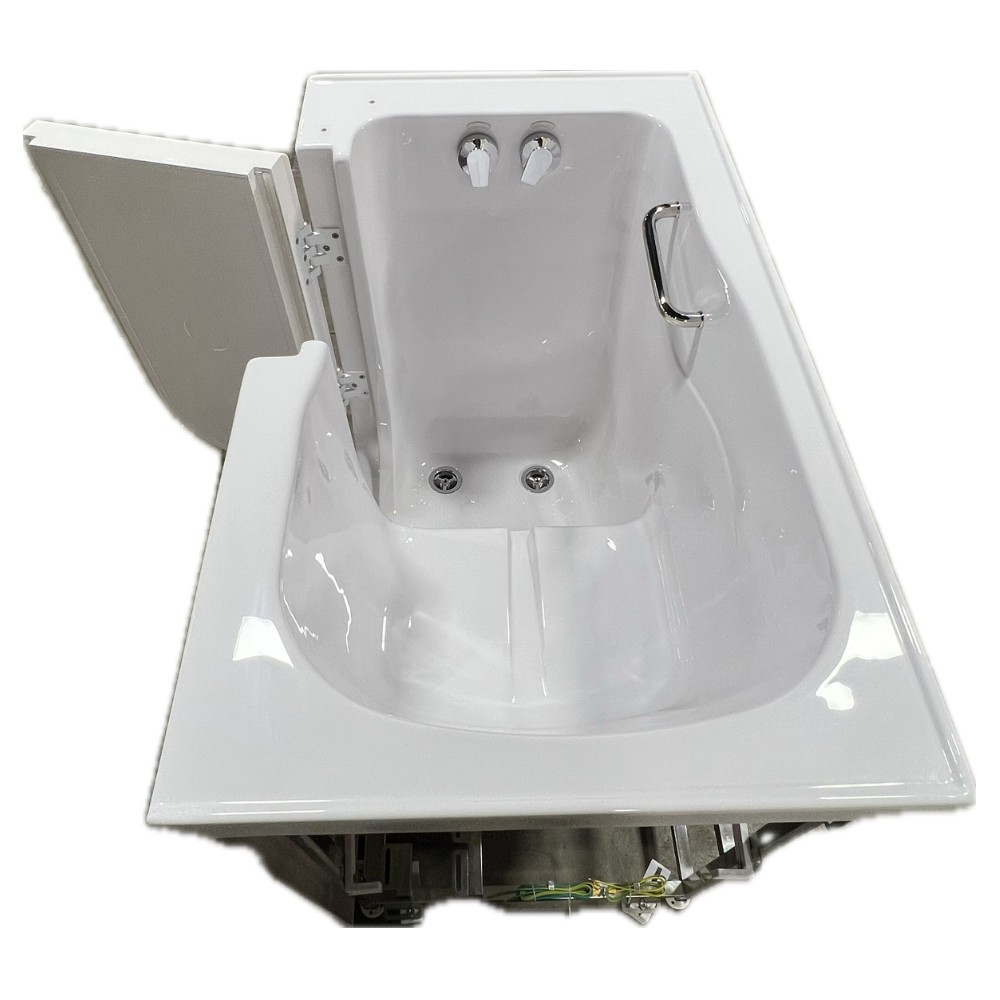

The Capri walk-in tub features a shell made from high-quality acrylic with a glossy white finish, reinforced by a stainless-steel frame with adjustable leveling legs and fiberglass gel coat layers. The nonporous acrylic surface is designed for easy cleaning and resists mold and mildew. Safety is enhanced with a textured floor, a low step-in threshold, and two stainless steel U-shaped grab bars—one deck-mounted and one wall-mounted in a chrome finish—for quick and secure entry and exit.

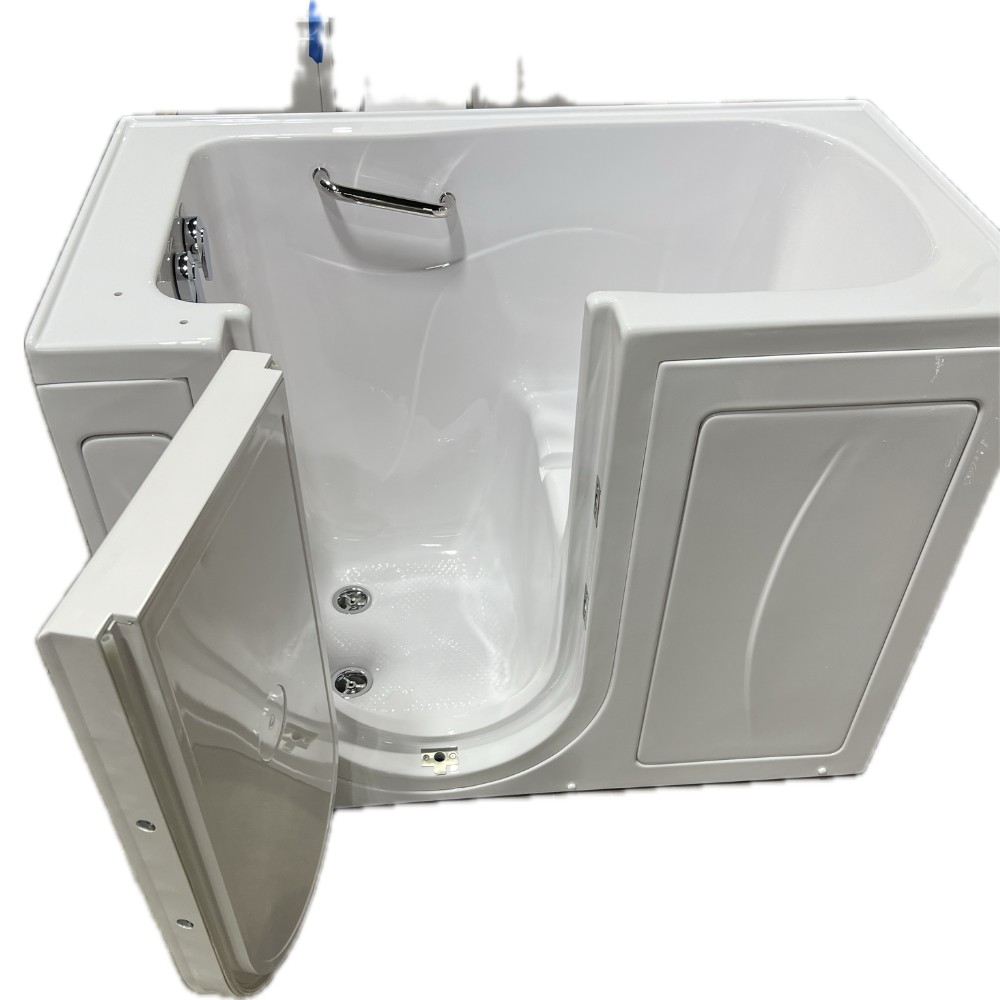

This standard-size walk-in tub measures 30”W x 52”L and includes a comfortable 20” wide seat. The standout feature of the Capri is its door, constructed from durable industrial-grade plastic composite with a decorative tempered glass screen that conceals the mechanical door lock system. The 19 1/4” wide door swings outward, making it easy for bathers to enter and exit. This outward swing also maximizes interior space, allowing users to sit comfortably on the molded seat, close the door, and lock it securely. Ella U-Shape outward swinging doors utilize a gear and shaft-driven 3-latch door lock system, providing a superior and watertight seal compared to competitors who often use a single latch/lever system. This ensures a safe, leak-free bathing experience.
The Capri is equipped with an exclusive Dual Drain Technology, featuring two independent 2” gravity-driven drains with four 2” outlets, two overflows, and two drain openers, ensuring fast and reliable drainage. Additionally, two caps are included to cover two of the four ports if necessary. The 2” drain outlets can be connected to a standard 1 ½” house drain using a T or Y fitting and piping provided by a professional plumber. For the fastest drainage, it’s recommended to connect all four outlets to the house drain. Under ideal in-home plumbing conditions, typical drainage time is approximately 80 seconds for this standard-size tub. Ella gravity-driven dual drains are efficient and reliable, eliminating the need for electric pumps that could fail due to electrical shorts or power outages.
This model also includes a reversible end panel for installation options in either left or right corners, as well as an extension filler panel kit for 60” alcove installations. The reversible end panel is designed to cover the exposed end of the walk-in tub shell. If your tub is to be installed against a wall with both ends exposed, an additional end panel can be ordered.
Warranty (See Downloads)
We offer a limited lifetime parts warranty* to the original purchaser residing at the installation address. This warranty is non-transferable to other owners or locations. For complete warranty details, please refer to the “Downloads” tab.
Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy
The Capri model offers 4 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage. The Capri is also available in a soaking option without jets.
Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
3. Hydro + Infusion™ MicroBubble Therapy
Download Schematics: Hydrotherapy Massage + Microbubble Therapy
4. Hydro + Independent Hydro Foot Massage System
Download Schematics: Hydrotherapy + Independent Hydro Foot Massage
Therapy Options + Heated Seat & Back Option
Download Schematics:
1. Hydrotherapy + Heated Seat & Back
2. Hydrotherapy + Air + Heated Seat & Back
3. Hydrotherapy + Microbubble Therapy + Heated Seat & Back
4. Hydrotherapy + Independent Hydro Foot Massage + Heated Seat & Back
1. Ella 2 Piece Fast-Fill Faucet
The Ella 2 Piece Fast Fill Faucet with pull out multi-function hand shower is perfect for your walk in bathtub or any bathtub where fill time matters. The fast fill 2 piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull out hand shower can be used for shower while the bathtub is filled to stay warm. Available in a Chrome or Brushed Nickel finish.
Disclaimer: Only the faucet can be ordered in brushed nickel. All other fixtures, including jets, drain openers, and grab bars, will be in chrome.
2. Complete Shower Column Kit For Deck Mounted Faucets
The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Controller Options
We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.
The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.
2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs
The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.

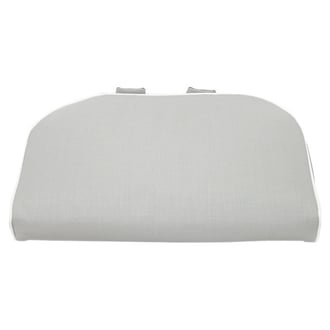

3. Standard Seat Pillow Riser
The Standard Seat Pillow Riser is designed to cover the bidet jets found in your Ella walk-in bathtub. This luxuriously thick pillow is incredibly comfortable and can be used as a riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.

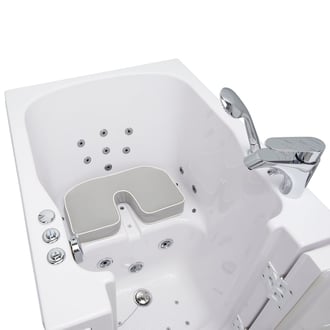

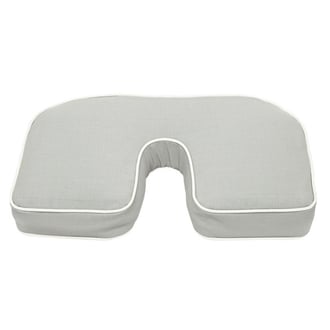

4. U-Shape Seat Pillow Riser
Our dual massage walk-in tubs have two air jets in the center of the seat. The U shape pillow is designed to accommodate these two bidet jets. If you want to cover bidet jets, you can utilize the regular seat pillow. This luxuriously thick pillow is incredibly comfortable and can be used as riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
5. Headrest & Neck Support
Increase your comfort with the Ella Walk-In Bathtub Headrest. The headrest can be mounted on the wall or on the deck using attached suction cups.
Ella Capri Walk-In Tub with Shower Column & 4-Fold Shower Screen
(Hydro+Independent Foot Massage Package)
The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit dual drain technology.
Our gear and shaft-driven 3-latch door significantly outperforms conventional single latch systems, offering a more secure, watertight seal, ensuring a leak-free bathing experience. This innovative mechanism provides smoother operation, reduces wear and tear, and facilitates easier alignment and locking, greatly enhancing both safety and ease of use, establishing a new standard in secure door design.
Ella walk-in tubs are equipped with 4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation. These jets are strategically positioned in the lowest possible area of the floor for bathers to enjoy a powerful foot massage in a relaxed position. No need to fill the whole tub, the foot well fills in just a couple of minutes!
